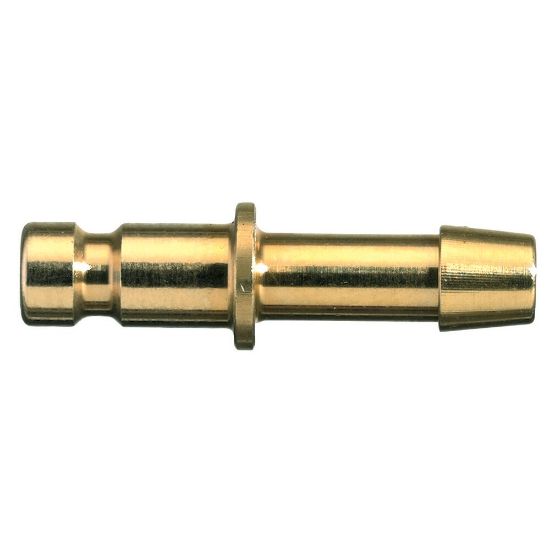

Quick Coupling, European Profile, ND 2.7 (Series 20) - 20SFTF04MXX

Name: Quick Coupling, European Profile, ND 2.7 (Series 20) - 20SFTF04MXX
SKU: 20SFTF04MXX
Availability: OutOfStock

Quick coupling system with nominal diameter 2.7 for pneumatic, liquids and gas applications up to 35 bar. Available in nickel-plated brass or stainless steel.

Availability:

Backordered

SKU: 20SFTF04MXX

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	5
Division	Low Pressure Connectors Europe Division	Body Material	BRASS
Brand	Parker	Shape	Straight
Seal Material	Without seal	Minimum Operating Temperature	down to -40 °C
Valve Included	No	Technology	Pneumatics
Industry	Healthcare & Life Sciences	Application	Electronics
Region of Origin	Germany	Connection Type	Hose Barb
Specifications Met	ATEX	Product Style	Quick-Connect
Maximum Operating Pressure	up to 35 bar	Operation Type	Sleeve
Interchange Type	European Profile	Product Series	Series 20
Diameter	2.7 mm (nominal)	Flow Rate	165 L/min (air)
Plating Type	Without Surface Treatment	Maximum Operating Temperature	up to 464 °F
For Fluid Type	Chemical Fluids	Connection Size	4 mm
Function	Straight-Through	Valve Type	Without Valve
Product Type	Pneumatics Quick Couplings	Coupling Half	Plug
Compatible Fitting	Series 20 Coupler	Length	24 mm
Weight	0.002 kg
Type	Plug	Connection Type	Hose Barb
Connection Thread Size	n/a	Materials of Construction	Brass
External Hex (mm)	n/a	Version	Single Shut-Off
Hose I.D.	4 mm	Connection Size	4 mm
Coupling Half	Plug
