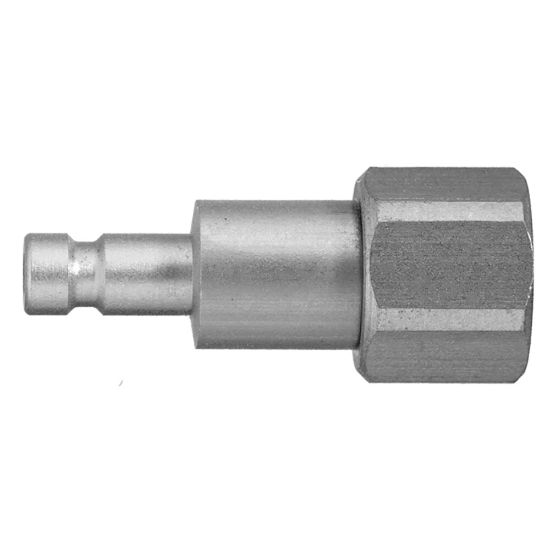

Quick Coupling, European Profile, ND 2.7 (Series 20) - 20SBIW10EVX

Name: Quick Coupling, European Profile, ND 2.7 (Series 20) - 20SBIW10EVX
SKU: 20SBIW10EVX
Availability: OutOfStock

Quick coupling system with nominal diameter 2.7 for pneumatic, liquids and gas applications up to 35 bar. Available in nickel-plated brass or stainless steel.

Availability:

Backordered

SKU: 20SBIW10EVX

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.011 kg	Division	Low Pressure Connectors Europe Division
Quantity per Box	1	Division	Low Pressure Connectors Europe Division
Minimum Operating Temperature	-15 °C	Shape	Straight
Length	30 mm	Valve Included	Yes
Technology	Fluid & Gas Handling	Body Material	Stainless Steel 316L
Seal Material	FKM	Maximum Operating Temperature	200 °C
Application	Medical	Industry	Healthcare & Life Sciences
Region of Origin	Germany	Specifications Met	ATEX
Product Style	Quick-Connect	Maximum Operating Pressure	up to 35 bar
Brand	Rectus	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Interchange Type	European Profile
Function	Double Shut-Off	Connection Type	BSPP ISO 228 Parallel
Product Series	Series 20	Diameter	2.7 mm (nominal)
Valve Type	Standard Valve	Plating Type	Without Surface Treatment
Connection Size	G 1/8	Hex Size	12 mm (external)
Flow Rate	1.2 L/min (water)	For Fluid Type	Glycol
Coupling Half	Plug	Compatible Fitting	Series 20 Coupler
Type	Plug	Hose I.D.	n/a
Connection Thread Size	1/8"	Version	Double Shut-Off
Connection Type	Female, BSPP	Connection Size	1/8"
Materials of Construction	Stainless Steel AISI 316L	External Hex (mm)	12
Coupling Half	Plug
