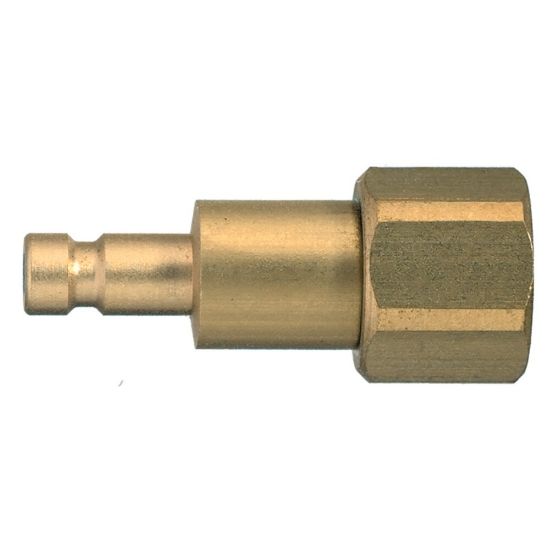

Quick Coupling, European Profile, ND 2.7 (Series 20) - 20SBIW10MPX

Name: Quick Coupling, European Profile, ND 2.7 (Series 20) - 20SBIW10MPX
SKU: 20SBIW10MPX
Availability: OutOfStock

Quick coupling system with nominal diameter 2.7 for pneumatic, liquids and gas applications up to 35 bar. Available in nickel-plated brass or stainless steel.

Availability:

Backordered

SKU: 20SBIW10MPX

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.011 kg	Division	Low Pressure Connectors Europe Division
Quantity per Box	5	Division	Low Pressure Connectors Europe Division
Application	Industrial Machinery	Body Material	BRASS
Maximum Operating Temperature	100 °C	Seal Material	NBR
Shape	Straight	Minimum Operating Temperature	-4 °F
Length	30 mm	Valve Included	Yes
Technology	Fluid & Gas Handling	Industry	Healthcare & Life Sciences
Region of Origin	Germany	Connection Type	Female
Specifications Met	ATEX	Product Style	Quick-Connect
Maximum Operating Pressure	up to 35 bar	Brand	Rectus
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Interchange Type	European Profile	Function	Double Shut-Off
Product Series	Series 20	Diameter	2.7 mm (nominal)
Valve Type	Standard Valve	Plating Type	Without Surface Treatment
Connection Size	G 1/8	Hex Size	12 mm (external)
Flow Rate	1.2 L/min (water)	For Fluid Type	Inert Gas
Coupling Half	Plug	Compatible Fitting	Series 20 Coupler
Type	Plug	Hose I.D.	n/a
Materials of Construction	Brass	Connection Thread Size	1/8"
Version	Double Shut-Off	Connection Type	Female, BSPP
Connection Size	1/8"	External Hex (mm)	12
Coupling Half	Plug
