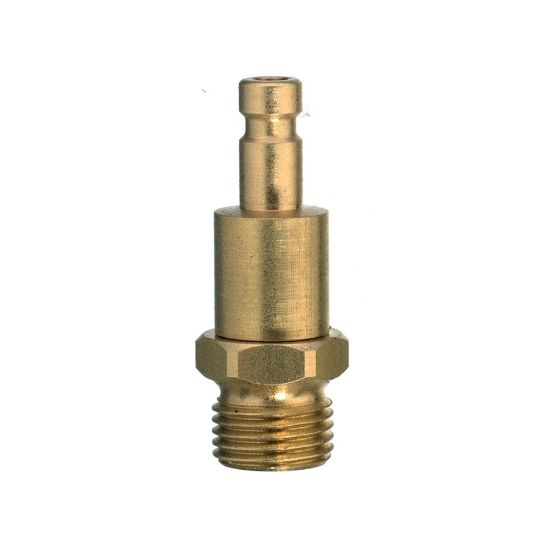

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Quick Coupling, European Profile, ND 2.7 (Series 20) - 20SBAW10REX

Name: Quick Coupling, European Profile, ND 2.7 (Series 20) - 20SBAW10REX
SKU: 20SBAW10REX
Availability: OutOfStock

Quick coupling system with nominal diameter 2.7 for pneumatic, liquids and gas applications up to 35 bar. Available in nickel-plated brass or stainless steel.

Availability:

Backordered

SKU: 20SBAW10REX

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Division	Low Pressure Connectors Europe Division	Maximum Operating Temperature	302 °F
Minimum Operating Temperature	-40 °F	Shape	Straight
Length	30 mm	Valve Included	Yes
For Fluid Type	Water	Technology	Fluid & Gas Handling
Seal Material	EPDM	Body Material	Stainless Steel 303
Region of Origin	Germany	Connection Type	Male
Specifications Met	ATEX	Product Style	Quick-Connect
Maximum Operating Pressure	up to 35 bar	Brand	Rectus
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Interchange Type	European Profile	Function	Double Shut-Off
Application	Energy Management	Industry	Electronics
Product Series	Series 20	Weight	0.009 kg
Diameter	2.7 mm (nominal)	Valve Type	Standard Valve
Plating Type	Without Surface Treatment	Connection Size	G 1/8
Hex Size	11 mm (external)	Flow Rate	1.2 L/min (water)
Coupling Half	Plug	Compatible Fitting	Series 20 Coupler
Type	Plug	Hose I.D.	n/a
Connection Thread Size	1/8"	Version	Double Shut-Off
Connection Type	Male, BSPP	Connection Size	1/8"
Materials of Construction	Stainless Steel AISI 303	External Hex (mm)	11
Coupling Half	Plug
