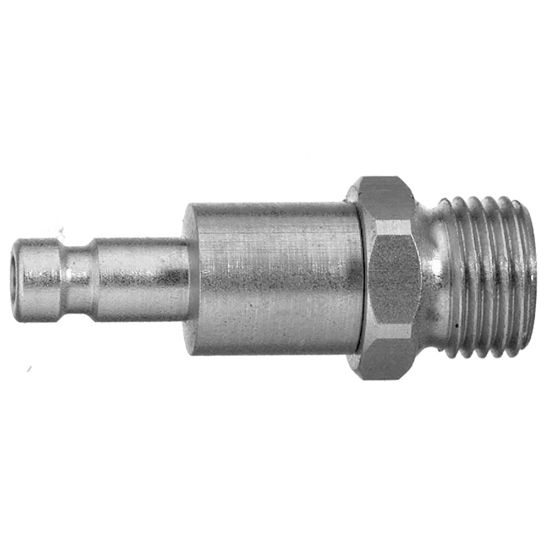

Quick Coupling, European Profile, ND 2.7 (Series 20) - 20SBAW10EVX

Name: Quick Coupling, European Profile, ND 2.7 (Series 20) - 20SBAW10EVX
SKU: 20SBAW10EVX
Availability: OutOfStock

Quick coupling system with nominal diameter 2.7 for pneumatic, liquids and gas applications up to 35 bar. Available in nickel-plated brass or stainless steel.

Availability:

Backordered

SKU: 20SBAW10EVX

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Division	Low Pressure Connectors Europe Division	Shape	Straight
Length	30 mm	Valve Included	Yes
For Fluid Type	Water	Technology	Fluid & Gas Handling
Minimum Operating Temperature	5 °F	Body Material	Stainless Steel 316L
Seal Material	FKM	Maximum Operating Temperature	200 °C
Region of Origin	Germany	Connection Type	Male
Specifications Met	ATEX	Product Style	Quick-Connect
Maximum Operating Pressure	up to 507 psi	Brand	Rectus
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Interchange Type	European Profile	Function	Double Shut-Off
Application	Energy Management	Industry	Electronics
Product Series	Series 20	Weight	0.009 kg
Diameter	2.7 mm (nominal)	Valve Type	Standard Valve
Plating Type	Without Surface Treatment	Connection Size	G 1/8
Hex Size	11 mm (external)	Flow Rate	1.2 L/min (water)
Coupling Half	Plug	Compatible Fitting	Series 20 Coupler
Type	Plug	Hose I.D.	n/a
Connection Thread Size	1/8"	Version	Double Shut-Off
Connection Type	Male, BSPP	Connection Size	1/8"
Materials of Construction	Stainless Steel AISI 316L	External Hex (mm)	11
Coupling Half	Plug
