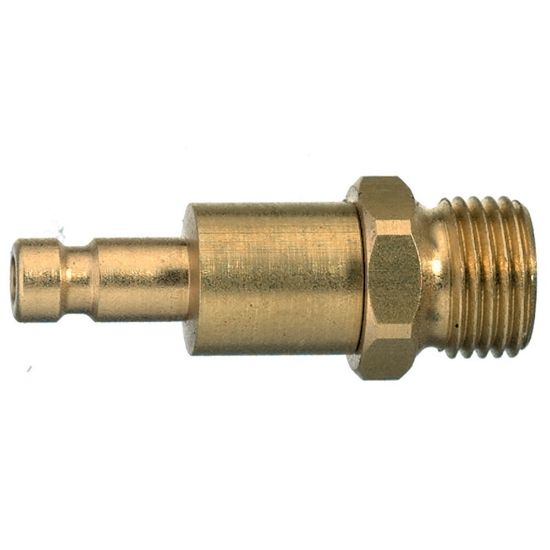

Quick Coupling, European Profile, ND 2.7 (Series 20) - 20SBAM05MPN

Name: Quick Coupling, European Profile, ND 2.7 (Series 20) - 20SBAM05MPN
SKU: 20SBAM05MPN
Availability: OutOfStock

Quick coupling system with nominal diameter 2.7 for pneumatic, liquids and gas applications up to 35 bar. Available in nickel-plated brass or stainless steel.

Availability:

Backordered

SKU: 20SBAM05MPN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	5
Division	Low Pressure Connectors Europe Division	Application	Industrial Machinery
Body Material	BRASS	Maximum Operating Temperature	100 °C
Minimum Operating Temperature	-20 °C	Seal Material	NBR
Specifications Met	RoHS	Shape	Straight
Weight	0.006 kg	Valve Included	Yes
Technology	Fluid & Gas Handling	Industry	General Industrial
For Fluid Type	Gases	Region of Origin	Germany
Connection Type	Male	Product Style	Quick-Connect
Maximum Operating Pressure	up to 35 bar	Brand	Rectus
Plating Type	Nickel-plated	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Interchange Type	European Profile
Function	Double Shut-Off	Product Series	Series 20
Length	28 mm	Diameter	2.7 mm (nominal)
Valve Type	Standard Valve	Connection Size	M5
Hex Size	9 mm (external)	Flow Rate	1.2 L/min (water)
Coupling Half	Plug	Compatible Fitting	Series 20 Coupler
Type	Plug	Hose I.D.	n/a
Connection Type	Male, Metric	Materials of Construction	Brass, Nickel-plated
Version	Double Shut-Off	Connection Size	5 mm
Connection Thread Size	5 mm	External Hex (mm)	9
Coupling Half	Plug
