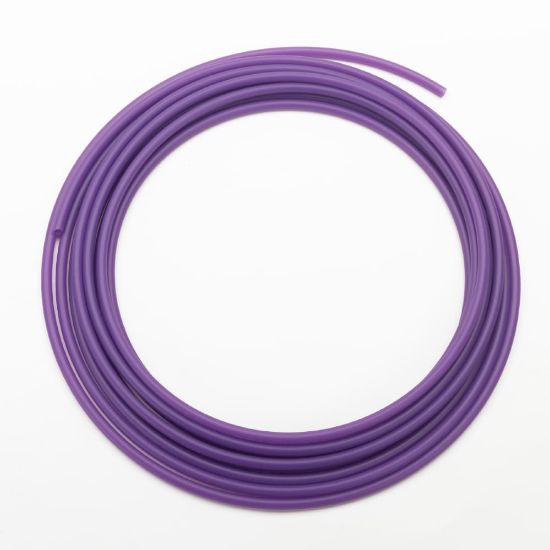

PE Tubing - E-43-P-0500

Polyethylene Tubing - E/EB Series Tubing is instrument grade tubing, made from 100% virgin Linear Low Density Polyethylene (LLDPE). Ideal for water, food, beverages and food grade applications.

Availability:	Backordered
Partner Available:	1136 in stock

SKU: E-43-P-0500

$0.34

Products specifications

Attribute name	Attribute value
Specifications Met	ASTM D1693	Application	Chemicals
Tube Outside Diameter	6.4 mm	Product Type	Fractional
Cover Material	n/a	Tube Inside Diameter	0.17 inch
Weight	0.16 kg/m	Division	Parflex Division
Media	Water	Minimum Bend Radius	25 mm
Color	Purple	Maximum Operating Pressure	8.3 bar
Tube Material	Polyethylene (PE)	Minimum Burst Pressure	480 psi
Size	1/4 inch	Compatible Fitting	TrueSeal™
Cover Color	n/a	Maximum Operating Temperature	150 °F
Minimum Operating Temperature	-62 °C	Length per Package	500 ft
Product Type	Fractional, Instr. Grade	Order Size	.170
Color	Purple	Standard Pack Qty (ft)	500
