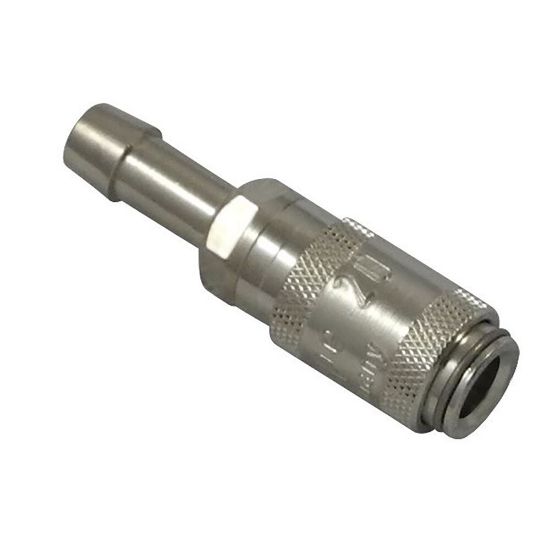

Quick Coupling, European Profile, ND 2.7 (Series 20) - 20KFTF04MPN

Name: Quick Coupling, European Profile, ND 2.7 (Series 20) - 20KFTF04MPN
SKU: 20KFTF04MPN
Availability: OutOfStock

Quick coupling system with nominal diameter 2.7 for pneumatic, liquids and gas applications up to 35 bar. Available in nickel-plated brass or stainless steel.

Availability:

Backordered

SKU: 20KFTF04MPN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	5
Division	Low Pressure Connectors Europe Division	Body Material	BRASS
Sleeve Material	BRASS	Maximum Operating Temperature	100 °C
Seal Material	NBR	Brand	Parker
Shape	Straight	Minimum Operating Temperature	-4 °F
Valve Included	No	Coupling Half	Coupler
Technology	Fluid & Gas Handling	Industry	Healthcare & Life Sciences
Application	Automotive	Length	35 mm
Region of Origin	Germany	Connection Type	Hose Barb
Specifications Met	ATEX	Product Style	Quick-Connect
Maximum Operating Pressure	up to 507 psi	Plating Type	Nickel-plated
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Interchange Type	European Profile	Product Series	Series 20
Diameter	2.7 mm (nominal)	Compatible Fitting	Series 20 Plug
For Fluid Type	Inert Gas	Connection Size	4 mm
Weight	0.0089 kg	Function	Straight-Through
Flow Rate	1.5 L/min (water)	Valve Type	Without Valve
Type	Coupling	Connection Type	Hose Barb
Connection Thread Size	n/a	Materials of Construction	Brass, Nickel-plated
External Hex (mm)	n/a	Coupling Half	Coupler
Hose I.D.	4 mm	Connection Size	4 mm
Version	Straight-Through
