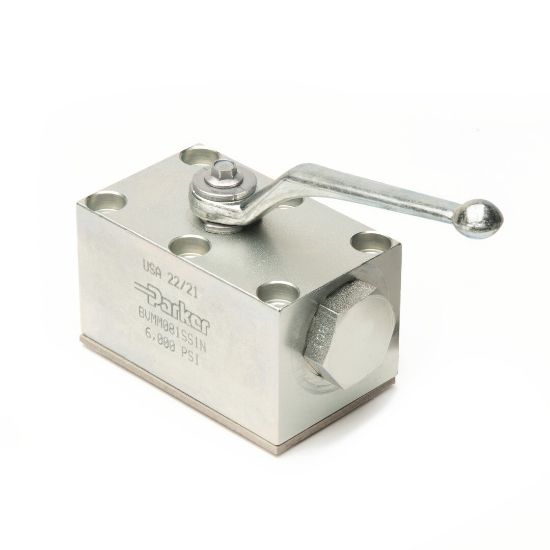

2-way, 3-way, 4-way High Pressure Ball Valves – BV Series - BVMM123SS1N

Name: 2-way, 3-way, 4-way High Pressure Ball Valves – BV Series - BVMM123SS1N
SKU: BVMM123SS1N
Availability: OutOfStock

Parker’s High Pressure BV Series ball valves offer a variety of porting and thread types. These valves are rated up to 11,600 psi and are zinc coated to extend the live of the valve.

Availability:

Backordered

SKU: BVMM123SS1N

Qty:

Products specifications

Attribute name	Attribute value
Body Material	Steel	Actuation Type	Manual
Function	2-way	Connection Size	3/4 inch
Mounting Type	Inline	Seal Material	Nitrile
Connection Type	NPT	Maximum Operating Temperature	100 °F
Division	Hydraulic Valve Systems Division	Minimum Operating Temperature	-20 °F
Configuration	L-Bore Port Overlap	Maximum Operating Pressure	7250 psi
Options	n/a	Handle Type	Standard Handle
Weight	11.5 lb	Product Type	2-Way Manifold Mount
Connection Type	NPT	Connection Size	3/4"
Mounting Type	Inline	Maximum Pressure (psi)	7250 PSI
Product Type	2-Way Manifold Mount
