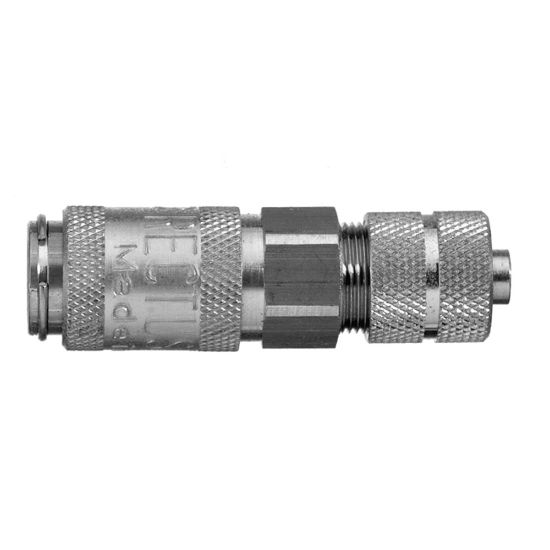

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Quick Coupling, European Profile, ND 2.7 (Series 20) - 20KAKO05RVX

Name: Quick Coupling, European Profile, ND 2.7 (Series 20) - 20KAKO05RVX
SKU: 20KAKO05RVX
Availability: OutOfStock

Quick coupling system with nominal diameter 2.7 for pneumatic, liquids and gas applications up to 35 bar. Available in nickel-plated brass or stainless steel.

Availability:

Backordered

SKU: 20KAKO05RVX

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.012 kg	Division	Low Pressure Connectors Europe Division
Quantity per Box	1	Division	Low Pressure Connectors Europe Division
Minimum Operating Temperature	-15 °C	Specifications Met	RoHS
For Fluid Type	Compressed Air	Shape	Straight
Industry	Transportation	Valve Included	Yes
Coupling Half	Coupler	Technology	Pneumatics
Seal Material	FKM	Maximum Operating Temperature	200 °C
Body Material	Stainless Steel 303	Length	34 mm
Region of Origin	Germany	Product Style	Quick-Connect
Maximum Operating Pressure	up to 507 psi	Brand	Rectus
Function	Single Shut-Off	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Interchange Type	European Profile
Product Series	Series 20	Connection Type	Tube with Hose Nut, without Spring Guard
Diameter	2.7 mm (nominal)	Flow Rate	165 L/min (air)
Valve Type	Standard Valve	Application	Textile Machinery
Plating Type	Without Surface Treatment	Connection Size	3x5 mm
Sleeve Material	Stainless Steel	Compatible Fitting	Series 20 Plug
Hex Size	9 mm (external)
Type	Coupling	Connection Thread Size	n/a
Version	Single Shut-Off	Coupling Half	Coupler
Hose I.D.	3x5 mm	Connection Size	3x5 mm
Connection Type	With Plastic Hose Connection	Materials of Construction	Stainless Steel AISI 303
External Hex (mm)	9
