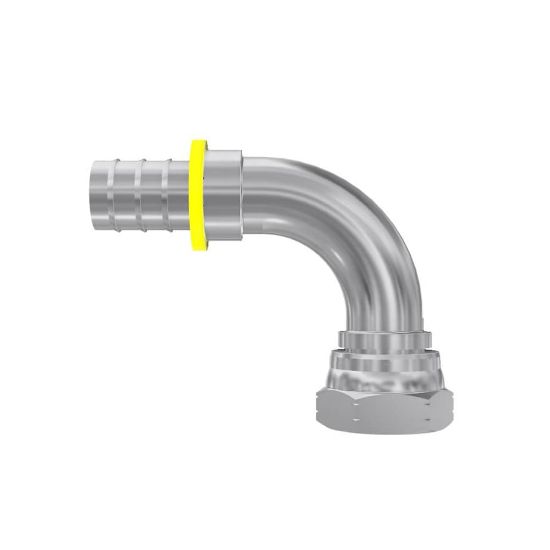

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Push On Field Attachable Hydraulic Hose Fitting - 82 Series - Europe - 3B282-10-10B

Name: Push On Field Attachable Hydraulic Hose Fitting - 82 Series - Europe - 3B282-10-10B
SKU: 3B282-10-10B
Availability: OutOfStock

Configure hose assemblies quickly and easily in the field without special tools with Parker’s 82 series one-piece, push-on field-attachable hydraulic fittings.

Availability:

Backordered

SKU: 3B282-10-10B

Qty:

Products specifications

Attribute name	Attribute value
Body Material	BRASS	Brand	Parker
Industry	Industrial Manufacturing Equipment	Technology	Fluid & Gas Handling
Division	Polymer Hose Division Europe	Connection 1 Type	Hose
Division	Polymer Hose Division Europe	Connection 1 Size	5/8 inch Hose I.D.
Connection Length	37 mm (see drawing legend B)	For Fluid Type	Air (General Industrial Air)
Fitting Length	74 mm (see drawing legend A)	Maximum Operating Pressure	42.0 MPa
Hex Size	30 mm (see drawing legend W)	Shape	Elbow 90°
Drop Length	44 mm (see drawing legend E)	Port Type	DKR
Connection 2 Size	5/8"-14 inch Thread	Connection 2 Type	BSP Parallel Pipe
Specifications Met	BS 5200-B	Product Type	Barbed Fittings\|Push-Lok Hose Fittings
Application	Transfer Lines
Body Material	BRASS	Port Connection	5/8"
Hose I.D. (size)	-10	Hex Type	Metric
Shape	Elbow 90°	Connection 2 Type	Female BSP Parallel Pipe - Swivel (60° Cone)

Product resources

Literature and Reference Materials

Parker Hydraulic Hoses, Fittings and Equipment Catalogue CAT_4400_UK--(English)
