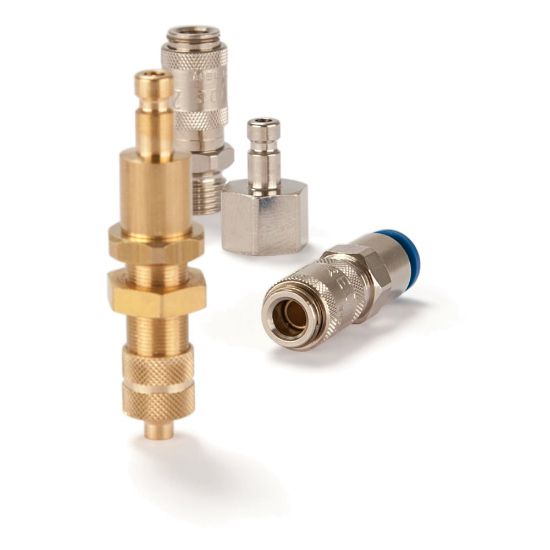

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Quick Coupling, European Profile, ND 2.7 (Series 20) - 20KAAM05RKX

Name: Quick Coupling, European Profile, ND 2.7 (Series 20) - 20KAAM05RKX
SKU: 20KAAM05RKX
Availability: OutOfStock

Quick coupling system with nominal diameter 2.7 for pneumatic, liquids and gas applications up to 35 bar. Available in nickel-plated brass or stainless steel.

Availability:

Backordered

SKU: 20KAAM05RKX

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Division	Low Pressure Connectors Europe Division	Specifications Met	RoHS
For Fluid Type	Compressed Air	Brand	Parker
Shape	Straight	Industry	Transportation
Coupling Half	Coupler	Technology	Pneumatics
Hex Size	9 mm	Body Material	Stainless Steel 303
Minimum Operating Temperature	-13 °F	Region of Origin	Germany
Product Style	Quick-Connect	Maximum Operating Pressure	up to 35 bar
Function	Single Shut-Off	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Interchange Type	European Profile
Product Series	Series 20	Connection Type	Metric DIN 13
Length	17 to 52.5 mm	Weight	0.0087 kg
Diameter	2.7 mm (nominal)	Flow Rate	165 L/min (air)
Valve Type	Standard Valve	Application	Pharma
Plating Type	Without Surface Treatment	Seal Material	FFKM
Connection Size	M5	Sleeve Material	Stainless Steel
Compatible Fitting	Series 20 Plug	Maximum Operating Temperature	up to 464 °F
Type	Coupling	Hose I.D.	n/a
Connection Type	Male, Metric	Version	Single Shut-Off
Coupling Half	Coupler	Connection Size	5 mm
Connection Thread Size	5 mm	Materials of Construction	Stainless Steel AISI 303
