Multi-Purpose Hydraulic Quick Couplings - H Series - VHN4-4F

General purpose, snap-tite design quick couplings for applications where fluid lines up to 4" require fast and easy connection and disconnection. Many sizes, ports and material options.

Availability:	70 in stock
Partner Available:	178 in stock

SKU: VHN4-4F

$16.70

Products specifications

Attribute name	Attribute value
Application	General Purpose	Maximum Operating Temperature	250 °F
Product Type	Manual Connect	Valve Type	Poppet
Minimum Operating Temperature	-40 °F	Dimensional Weight	0.01999400479616307 lb
Plating Type	Zinc with clear trivalent chromate	Division	Quick Coupling Division
Hex Size	1 inch	Seal Material	Nitrile
Coupling Half	Male Nipple	Connection Thread Size (inch)	1/4 - 18
Body Material	Steel	Maximum Operating Pressure	6500
Valve Type	Poppet	Body Size (inch)	1/4
Connection Type	Female NPTF

Customers who bought this item also bought

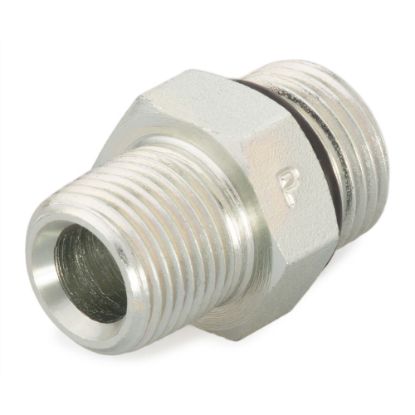

Pipe Fittings and Port Adapters - 8-1/4 F5OF-S
