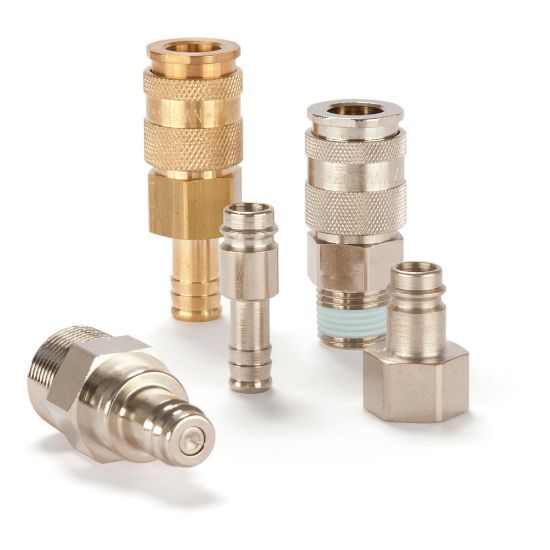

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 27KFAW21EVX

Name: Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 27KFAW21EVX
SKU: 27KFAW21EVX
Availability: OutOfStock

Premium quick coupling system with nominal diameter 10 for pneumatic and fluid handling applications up to 35 bar. Coupling system with the largest standard European profile. Available made of brass/steel or stainless steel.

Availability:

Backordered

SKU: 27KFAW21EVX

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Division	Low Pressure Connectors Europe Division	Sleeve Material	BRASS
Specifications Met	RoHS	Shape	Straight
Valve Included	No	Coupling Half	Coupler
For Fluid Type	Water	Technology	Fluid & Gas Handling
Minimum Operating Temperature	5 °F	Body Material	Stainless Steel 316L
Seal Material	FKM	Industry	Healthcare & Life Sciences
Region of Origin	Germany	Product Style	Quick-Connect
Maximum Operating Pressure	up to 507 psi	Brand	Rectus
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Connection Size	G 1/2	Interchange Type	European Profile
Connection Type	BSPP ISO 228 Parallel	Length	33 to 76 mm
Application	Energy Management	Diameter	10 mm (nominal)
Compatible Fitting	Series 27 Plug	Plating Type	Without Surface Treatment
Maximum Operating Temperature	392 °F	Function	Straight-Through
Valve Type	High Flow Valve	Weight	0.1312 kg
Hex Size	17 to 32 mm	Product Series	Series 27
Flow Rate	14 L/min (water)
Coupling Half	Coupler	Connection Size	1/2"
Connection Type	Male, BSPP	Materials of Construction	Stainless Steel AISI 316L
Version	Straight Through
