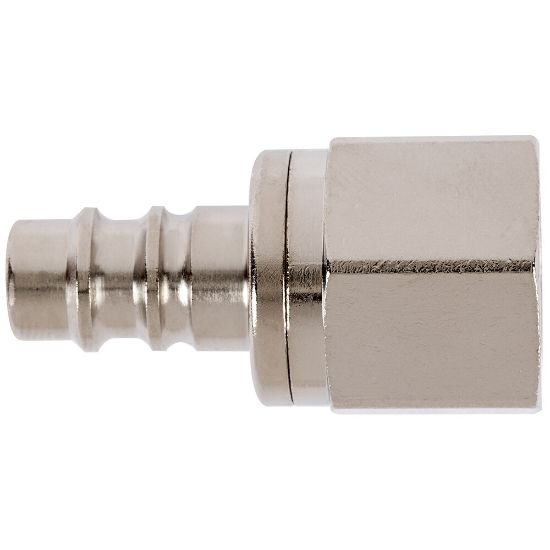

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25SDIW13MVN

Name: Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25SDIW13MVN
SKU: 25SDIW13MVN
Availability: OutOfStock

Quick coupling system with nominal diameter 7.8 for pneumatic (series 25, 1600 and 1625), liquids and gas applications (series 25) up to 35 bar. Available in nickel-plated brass, steel, stainless steel (technical polymer sleeve for series 1625).

Availability:

Backordered

SKU: 25SDIW13MVN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	10
Division	Low Pressure Connectors Europe Division	Body Material	BRASS
Minimum Operating Temperature	-15 °C	Weight	0.063 kg
Shape	Straight	Connection Size	G 1/4
Valve Included	Yes	Connection Type	BSPP
Technology	Fluid & Gas Handling	Seal Material	FKM
Industry	General Industrial	Flow Rate	1800 L/min
Region of Origin	Germany	Specifications Met	ATEX
Product Style	Quick-Connect	Maximum Operating Pressure	up to 507 psi
Brand	Rectus	Length	30 to 155 mm
Diameter	7.8 mm (nominal)	Hex Size	13 to 24 mm
Valve Type	Ultra High Flow Valve	Plating Type	Nickel-plated
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Interchange Type	European Profile	Maximum Operating Temperature	392 °F
For Fluid Type	Chemical Fluids	Coupling Half	Plug
Application	Safety & Rescue	Function	Safety (double shut-off)
Product Series	Series 25 - Safety	Compatible Fitting	Series 25 Coupler
Materials of Construction	Brass	Version	Double Shut-Off
Connection Size	1/4"	Connection Type	Female, BSPP
Coupling Half	Plug - Safety
