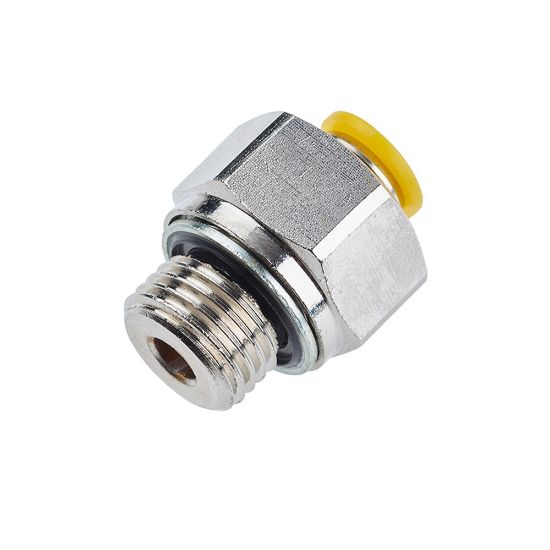

Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal - 68PLP-10M-4G

Name: Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal - 68PLP-10M-4G
SKU: 68PLP-10M-4G
Availability: OutOfStock

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Availability:

Backordered

SKU: 68PLP-10M-4G

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	93.3 °C	Division	Fluid System Connectors Division
Materials of Construction	PVDF (Button)	Seal Material	Nitrile
Gripping Ring Material	STAINLESS STEEL	Body Material	Brass, Nickel-plated
For Fluid Type	Inert Gases	Hex Size	3/4 inch
Maximum Operating Pressure	20.6 bar	Application	Vacuum
Industry	Material Handling	Brand	Parker
Tube Material	Polypropylene	Technology	Pneumatics
Specifications Met	UL 94 V-0	Region of Origin	United States
Vacuum Pressure Rating	28 Inch-Hg	Division	Fluid System Connectors Division
Minimum Operating Temperature	-17.7 °C
Product Style	Connector	Configuration	Tube to Pipe
Connection 1 Size	10 mm	Connection 1 Type	Push-to-Connect
Connection 2 Type	Male BSPP	Connection 2 Size	1/4"
