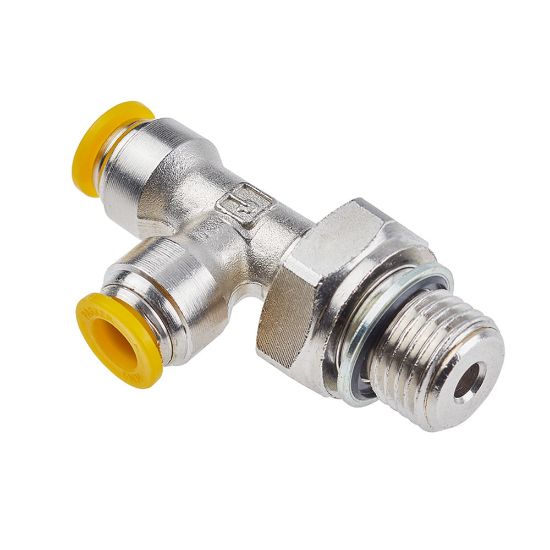

Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal - 171PLP-10M-4G

Name: Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal - 171PLP-10M-4G
SKU: 171PLP-10M-4G
Availability: OutOfStock

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Availability:

Backordered

SKU: 171PLP-10M-4G

Qty:

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Brand	Parker
Seal Material	Nitrile	Vacuum Pressure Rating	28 Inch-Hg
For Fluid Type	Inert Gases	Technology	Fluid & Gas Handling
Gripping Ring Material	STAINLESS STEEL	Minimum Operating Temperature	0 °F
Body Material	Brass, Nickel-plated	Specifications Met	UL 94 V-0
Industry	Semiconductor	Maximum Operating Temperature	200 °F
Materials of Construction	PVDF (Button)	Division	Fluid System Connectors Division
Maximum Operating Pressure	20.6 bar	Region of Origin	United States
Application	Vacuum	Tube Material	Rigid Nylon
Hex Size	3/4 inch
Connection 2 Size	1/4"	Connection 1 Size	10 mm
Connection 1 Type	Push-to-Connect	Connection 3 Size	10 mm
Connection 3 Type	Push-to-Connect	Configuration	Tube to Pipe
Connection 2 Type	Male BSPP	Shape	Run Tee - Swivel
