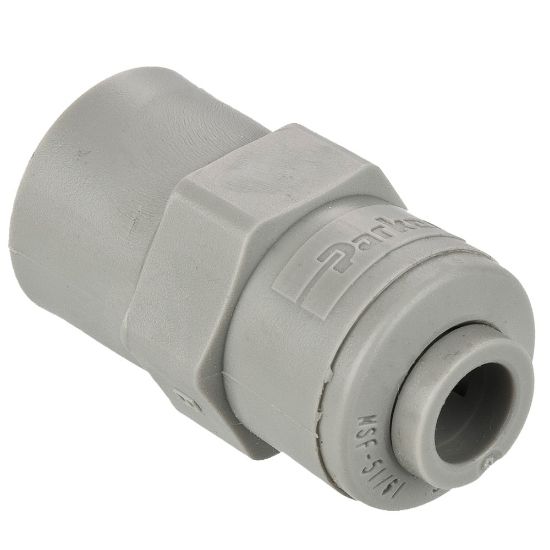

Push-to-Connect all plastic FDA compliant fitting, Parker TrueSeal - A6FF6-MG

Parker's TrueSeal push-in tube fittings are manufactured from FDA compliant materials and are NSF-51 listed for contact with food. Gray acetal fittings meet NSF-61 requirements for potable water.

Availability:	Backordered
Partner Available:	47 in stock

SKU: A6FF6-MG

$6.38

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	82.2 °C	Specifications Met	NSF/ANSI/CAN 61
Minimum Operating Temperature	-29 °C	Maximum Operating Pressure	20 bar
Division	Fluid System Connectors Division	Seal Material	EPDM (O-Ring)
Connection 1 Type	Push-to-Connect	Configuration	Tube to Female Flare
Body Material	Acetal	Connection 2 Type	UNS-2B Straight
Product Style	Connector	Connection 1 Size	3/8"
Connection 2 Size	5/8"-18	Color	Gray
