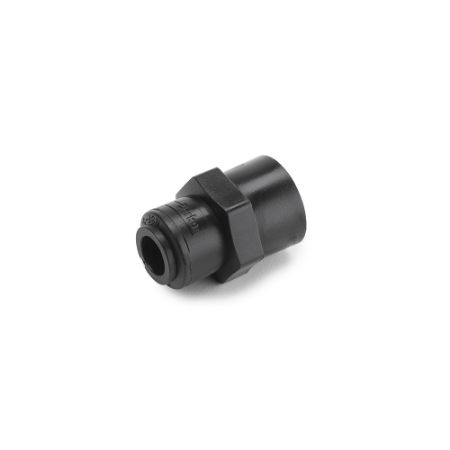

Push-to-Connect all plastic FDA compliant fitting, Parker TrueSeal
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s TrueSeal thermoplastic push fit fittings are lightweight, field attachable and quickly connect to tubing without the use of tools. TrueSeal is a robust push-to-connect fitting ideal for water treatment and harsh chemical environments. Available in Acetal, Polypropylene and Kynar, TrueSeal fittings offer FDA and NSF 51 compliance; NSF 61 compliance in gray Acetal. TrueSeal in Acetal and Polypropylene has an EPDM seal, Kynar has a fluorocarbon seal. The gripping ring in TrueSeal is available with either a stainless-steel bite edge or an engineered thermoplastic bite edge.
Use with Parker Parflex Division tubing:
• Polyethylene
• Polypropylene
• Nylon
• Vinyl
• Fluoropolymer
• Polyurethane
• Kynar
Markets:
• Food
• Potable water
• Chemical
• Filtration
• Beverage
Features and Benefits:
• Gripping teeth available in stainless steel or with and engineered thermoplastic bite edge
• Acetal, Polypropylene and Kynar body material
• Engineered O-ring increases seal compression on tube
• EPDM seal in Acetal and Polypropylene, fluorocarbon in Kynar material
• FDA Compliant
• All fittings are NSF-51 listed
• Gray Acetal fittings are NSF-61
• 1/4" - 1/2" tube size
• NPT threads
• Push button release
• Use with Polyethylene, Polypropylene, Nylon, Vinyl, Fluoropolymer, Polyurethane, Kynar
Applications:
• Air
• Water
• Reverse Osmosis
• Beer & wine
• Dispensing systems
Custom configurations and sizes are available upon request. Contact us for additional information.
| Action | SKU | Availability | Partner Available | Price | Division | Maximum Operating Pressure | Maximum Operating Temperature | Minimum Operating Temperature | Seal Material | Specifications Met | Connection 2 Size | Connection 1 Size | Configuration | Connection 1 Type | Connection 2 Type | Body Material | Shape | Color | Product Style | Connection 3 Size | Connection 3 Type | Connection 4 Size | Connection 4 Type | Dimensional Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A4BU4-MG | Backordered | 20 in stock | $3.75 | Fluid System Connectors Division | 300 psi | 180 °F | -20 °F | EPDM (O-Ring) | NSF/ANSI/CAN 61 | 1/4" | 1/4" | Tube to Tube | Push-to-Connect | Push-to-Connect | Acetal | Union - Bulkhead | Gray | |||||||
| A4CAP-MG | Backordered | 12 in stock | $2.97 | Fluid System Connectors Division | 20 bar | 82.2 °C | -29 °C | EPDM (O-Ring) | NSF/ANSI/CAN 61 | 1/4" | Push-to-Connect | Acetal | Gray | Cap | ||||||||||
| A4CU4-MG | Backordered | 19 in stock | $7.82 | Fluid System Connectors Division | 20 bar | 82.2 °C | -29 °C | EPDM (O-Ring) | NSF/ANSI 51 | 1/4" | 1/4" | Tube to Tube | Push-to-Connect | Push-to-Connect | Acetal | Cross | Gray | 1/4" | Push-to-Connect | 1/4" | Push-to-Connect | |||
| A4EU4-MG | Backordered | 44 in stock | $2.20 | Fluid System Connectors Division | 20 bar | 82.2 °C | -20 °F | EPDM (O-Ring) | FDA | 1/4" | 1/4" | Tube to Tube | Push-to-Connect | Push-to-Connect | Acetal | Elbow 90° | Gray | 0.2914 lb | ||||||
| A4FA7-MG | Backordered | 3 in stock | $2.52 | Fluid System Connectors Division | 300 psi | 82.2 °C | -20 °F | EPDM (O-Ring) | NSF/ANSI 51 | 7/16"-24 | 1/4" | Tube to Female Pipe | Push-to-Connect | UNS-2B Straight | Acetal | Gray | Faucet Adapter | 0.2914 lb | ||||||
| A4FC2-MG | 10 in stock | 1 in stock | $2.87 | Fluid System Connectors Division | 300 psi | 82.2 °C | -20 °F | EPDM (O-Ring) | NSF/ANSI/CAN 61 | 1/8" | 1/4" | Tube to Female Pipe | Push-to-Connect | Female NPT | Acetal | Gray | Connector | |||||||
| A4FE4-MG | Backordered | 2 in stock | $3.47 | Fluid System Connectors Division | 300 psi | 82.2 °C | -20 °F | EPDM (O-Ring) | NSF/ANSI 51 | 1/4" | 1/4" | Tube to Female Pipe | Push-to-Connect | Female NPT | Acetal | Elbow 90° | Gray | 0.2914 lb | ||||||
| A4FF4-MG | Backordered | 13 in stock | $3.05 | Fluid System Connectors Division | 300 psi | 82.2 °C | -20 °F | EPDM (O-Ring) | NSF/ANSI 51 | 7/16"-20 | 1/4" | Tube to Female Flare | Push-to-Connect | UNS-2B Straight | Acetal | Gray | Connector | |||||||
| A4MC2-MG | Backordered | 93 in stock | $1.31 | Fluid System Connectors Division | 20 bar | 180 °F | -20 °F | EPDM (O-Ring) | FDA | 1/8" | 1/4" | Tube to Pipe | Push-to-Connect | Male NPT | Acetal | Gray | Connector | 0.1335 lb | ||||||
| A4MC4-MG | 6 in stock | 520 in stock | $1.41 | Fluid System Connectors Division | 300 psi | 180 °F | -20 °F | EPDM (O-Ring) | NSF/ANSI/CAN 61 | 1/4" | 1/4" | Tube to Pipe | Push-to-Connect | Male NPT | Acetal | Gray | Connector | 0.1781 lb | ||||||
| A4MC6-MG | Backordered | 106 in stock | $2.50 | Fluid System Connectors Division | 300 psi | 82.2 °C | -20 °F | EPDM (O-Ring) | NSF/ANSI 51 | 3/8" | 1/4" | Tube to Pipe | Push-to-Connect | Male NPT | Acetal | Gray | Connector | 0.1781 lb | ||||||
| A4ME2-MG | Backordered | 53 in stock | $1.93 | Fluid System Connectors Division | 300 psi | 82.2 °C | -29 °C | EPDM (O-Ring) | NSF/ANSI/CAN 61 | 1/8" | 1/4" | Tube to Pipe | Push-to-Connect | Male NPT | Acetal | Elbow 90° | Gray | 0.1335 lb | ||||||
| A4ME4-MG | Backordered | 522 in stock | $2.17 | Fluid System Connectors Division | 20 bar | 82.2 °C | -20 °F | EPDM (O-Ring) | NSF/ANSI 51 | 1/4" | 1/4" | Tube to Pipe | Push-to-Connect | Male NPT | Acetal | Elbow 90° | Gray | 0.0117 lb | ||||||
| A4ME6-MG | Backordered | 146 in stock | $2.59 | Fluid System Connectors Division | 300 psi | 82.2 °C | -20 °F | EPDM (O-Ring) | FDA | 3/8" | 1/4" | Tube to Pipe | Push-to-Connect | Male NPT | Acetal | Elbow 90° | Gray | |||||||
| A4MES2-MG | Backordered | 62 in stock | $3.12 | Fluid System Connectors Division | 20 bar | 82.2 °C | -20 °F | EPDM (O-Ring) | NSF/ANSI 51 | 1/8" | 1/4" | Tube to Pipe | Push-to-Connect | Male NPT | Acetal | Elbow 90° - Swivel | Gray | 0.1781 lb | ||||||
| A4MES4-MG | Backordered | 13 in stock | $3.12 | Fluid System Connectors Division | 20 bar | 82.2 °C | -29 °C | EPDM (O-Ring) | NSF/ANSI 51 | 1/4" | 1/4" | Tube to Pipe | Push-to-Connect | Male NPT | Acetal | Elbow 90° - Swivel | Gray | 0.1781 lb | ||||||
| A4MES6-MG | Backordered | Backordered | $4.85 | Fluid System Connectors Division | 300 psi | 82.2 °C | -29 °C | EPDM (O-Ring) | FDA | 3/8" | 1/4" | Tube to Pipe | Push-to-Connect | Male NPT | Acetal | Elbow 90° - Swivel | Gray | |||||||
| A4MRS2-MG | Backordered | Backordered | $3.90 | Fluid System Connectors Division | 20 bar | 82.2 °C | -20 °F | EPDM (O-Ring) | NSF/ANSI 51 | 1/8" | 1/4" | Tube to Pipe | Push-to-Connect | Male NPT | Acetal | Run Tee | Gray | 1/4" | Push-to-Connect | |||||
| A4MRS4-MG | Backordered | 1 in stock | $4.13 | Fluid System Connectors Division | 300 psi | 82.2 °C | -20 °F | EPDM (O-Ring) | FDA | 1/4" | 1/4" | Tube to Pipe | Push-to-Connect | Male NPT | Acetal | Run Tee | Gray | 1/4" | Push-to-Connect | |||||
| A4MTS2-MG | Backordered | 22 in stock | $3.90 | Fluid System Connectors Division | 300 psi | 82.2 °C | -20 °F | EPDM (O-Ring) | FDA | 1/4" | 1/4" | Tube to Pipe | Push-to-Connect | Push-to-Connect | Acetal | Branch Tee | Gray | 1/8" | Male NPT |
