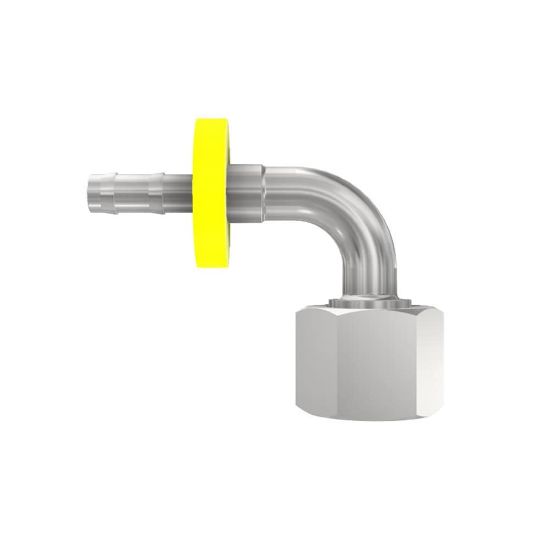

Push On Field Attachable Hydraulic Hose Fitting - 82 Series - Europe - 3C582-28-16

Name: Push On Field Attachable Hydraulic Hose Fitting - 82 Series - Europe - 3C582-28-16
SKU: 3C582-28-16
Availability: OutOfStock

Configure hose assemblies quickly and easily in the field without special tools with Parker’s 82 series one-piece, push-on field-attachable hydraulic fittings.

Availability:

Backordered

SKU: 3C582-28-16

Qty:

Products specifications

Attribute name	Attribute value
Body Material	Steel	Brand	Parker
Industry	Industrial Manufacturing Equipment	For Fluid Type	Water
Technology	Fluid & Gas Handling	Division	Polymer Hose Division Europe
Connection 1 Type	Hose	Division	Polymer Hose Division Europe
Connection 1 Size	1 inch Hose I.D.	Connection 2 Type	Female
Fitting Length	101 mm (see drawing legend A)	Connection Length	64 mm (see drawing legend B)
Connection 2 Size	M36x2.0 mm Thread	Hex Size	41 mm (see drawing legend W)
Shape	Elbow 90°	Specifications Met	BS 5200-A
Drop Length	66 mm (see drawing legend E)	Port Type	DKL 90°
Tube Outside Diameter	28 mm	Product Type	Barbed Fittings\|Push-Lok Hose Fittings
Application	Injection Moulding Machines	Maximum Operating Pressure	10.0 MPa
Body Material	Steel	Hose I.D. (size)	-16
Hex Type	Metric	Shape	Elbow 90°
Port Connection	28 mm	Connection 2 Type	Female Metric L - Swivel (Ball Nose for 24° or 60° Cone)

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Parker Hydraulic Hoses, Fittings and Equipment Catalogue CAT_4400_UK--(English)
