*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

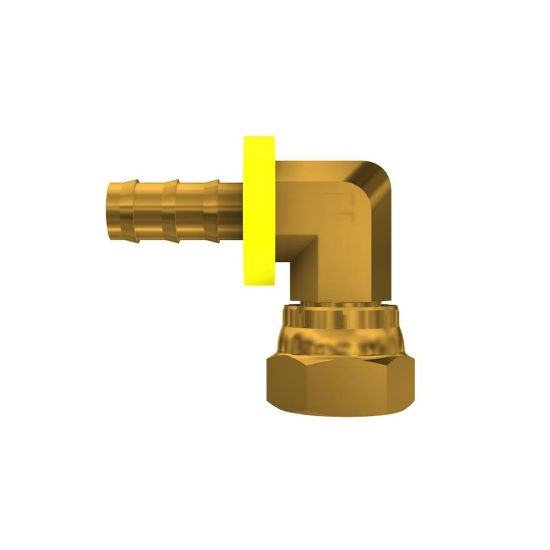

Push On Field Attachable Hydraulic Hose Fitting - 82 Series - Europe - 37C82-12X1-4B

Name: Push On Field Attachable Hydraulic Hose Fitting - 82 Series - Europe - 37C82-12X1-4B
SKU: 37C82-12X1-4B
Availability: OutOfStock

Configure hose assemblies quickly and easily in the field without special tools with Parker’s 82 series one-piece, push-on field-attachable hydraulic fittings.

Availability:

Backordered

SKU: 37C82-12X1-4B

Qty:

Products specifications

Attribute name	Attribute value
Connection 1 Size	-4 (Size)	Technology	Fluid & Gas Handling
Application	Paper Machines	Connection 2 Type	Swivel
Brand	Parker	Fitting Length	38 mm (see drawing legend A)
Maximum Operating Pressure	25.0 MPa	For Fluid Type	Water
Shape	Elbow 90°	Drop Length	n/a
Division	Polymer Hose Division Europe	Connection Length	10 mm (see drawing legend B)
Body Material	BRASS	Division	Polymer Hose Division Europe
Industry	Industrial Manufacturing Equipment	Connection 2 Size	M12x1.0 mm Thread
Product Type	Barbed Fittings\|Push-Lok Hose Fittings	Connection 1 Type	Hose
Hex Size	22 mm (see drawing legend W)
Connection 2 Type	Female - Swivel (60° Cone)	Shape	Elbow 90°
Body Material	BRASS	Hex Type	Metric
Port Connection	6 mm	Hose I.D. (size)	-4

Product resources

Literature and Reference Materials

Parker Hydraulic Hoses, Fittings and Equipment Catalogue CAT_4400_UK--(English)

Compliance, Certifications & Safety
