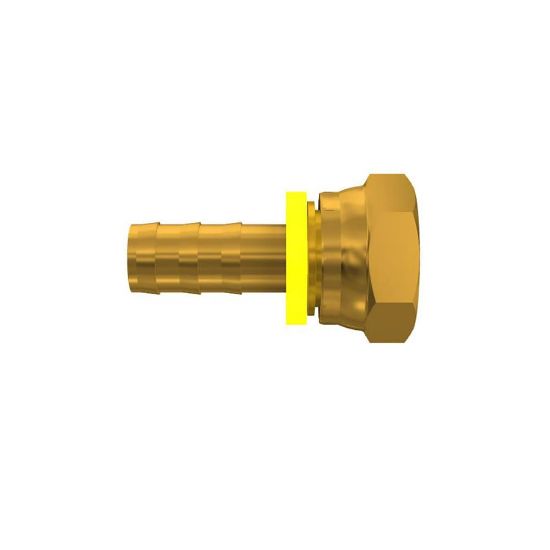

Push On Field Attachable Hydraulic Hose Fitting - 82 Series - Europe - 35C82-6-4B

Name: Push On Field Attachable Hydraulic Hose Fitting - 82 Series - Europe - 35C82-6-4B
SKU: 35C82-6-4B
Availability: OutOfStock

Configure hose assemblies quickly and easily in the field without special tools with Parker’s 82 series one-piece, push-on field-attachable hydraulic fittings.

Availability:

Backordered

SKU: 35C82-6-4B

Qty:

Products specifications

Attribute name	Attribute value
Connection 2 Size	M12x1.5 mm Thread	Division	Polymer Hose Division Europe
Body Material	BRASS	Industry	Industrial Manufacturing Equipment
Connection Length	14 mm (see drawing legend B)	Fitting Length	33 mm (see drawing legend A)
Product Type	Barbed Fittings\|Push-Lok Hose Fittings	Connection 1 Type	Hose
For Fluid Type	Air (General Industrial Air)	Technology	Fluid & Gas Handling
Connection 1 Size	-4 (Size)	Hex Size	14 mm (see drawing legend W)
Application	Paper Machines	Maximum Operating Pressure	25.0 MPa
Brand	Parker	Connection 2 Type	Female
Division	Polymer Hose Division Europe	Shape	Straight
Body Material	BRASS	Hose I.D. (size)	-4
Port Connection	6 mm	Hex Type	Metric
Shape	Straight	Connection 2 Type	Female - Swivel (60° Cone)

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Parker Hydraulic Hoses, Fittings and Equipment Catalogue CAT_4400_UK--(English)
