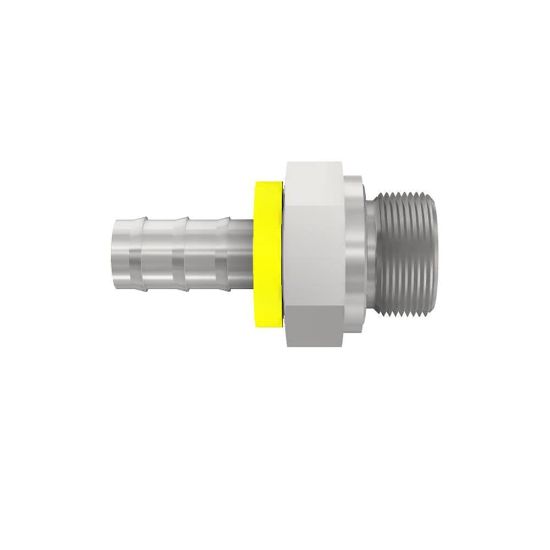

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Push On Field Attachable Hydraulic Hose Fitting - 82 Series - Europe - 3AF82-6-6B

Name: Push On Field Attachable Hydraulic Hose Fitting - 82 Series - Europe - 3AF82-6-6B
SKU: 3AF82-6-6B
Availability: OutOfStock

Configure hose assemblies quickly and easily in the field without special tools with Parker’s 82 series one-piece, push-on field-attachable hydraulic fittings.

Availability:

Backordered

SKU: 3AF82-6-6B

Qty:

Products specifications

Attribute name	Attribute value
Body Material	BRASS	Brand	Parker
Shape	Straight	Application	Machine Tools
Industry	Industrial Manufacturing Equipment	Technology	Fluid & Gas Handling
Connection 1 Size	-6 (Size)	Division	Polymer Hose Division Europe
Connection 1 Type	Hose	Division	Polymer Hose Division Europe
Connection 2 Type	Rigid (with O-Ring)	Connection Length	23 mm (see drawing legend B)
Fitting Length	46 mm (see drawing legend A)	Hex Size	22 mm (see drawing legend W)
Port Type	DKR	Maximum Operating Pressure	550 bar
Connection 2 Size	3/8"-19 inch Thread	Specifications Met	BS 5200-A
Product Type	Barbed Fittings\|Push-Lok Hose Fittings	For Fluid Type	Petroleum Hydraulic Fluids (Petroleum & Water-Glycol Base)
Shape	Straight	Body Material	BRASS
Port Connection	3/8"	Hose I.D. (size)	-6
Hex Type	Metric	Connection 2 Type	Male BSP Parallel Pipe - Rigid (with O-ring)
