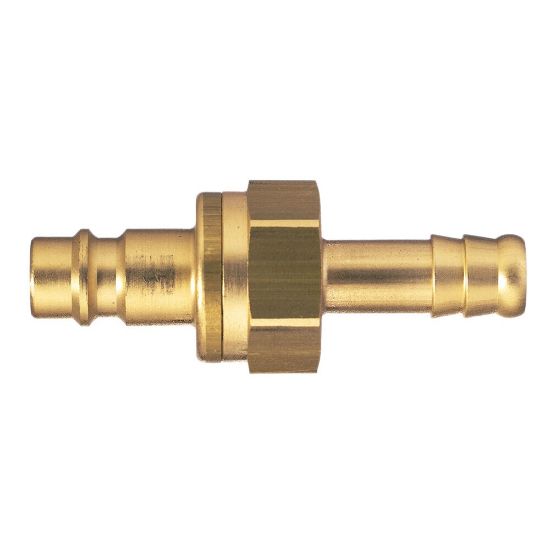

Quick Coupling, European Profile, ND 7.2 (Series 26) - 26SRTF10MXX

Name: Quick Coupling, European Profile, ND 7.2 (Series 26) - 26SRTF10MXX
SKU: 26SRTF10MXX
Availability: OutOfStock

Quick coupling system with nominal diameter 7.2 for pneumatic applications up to 35 bar. Available in brass sleeve or polymer.

Availability:

Backordered

SKU: 26SRTF10MXX

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	10
Division	Low Pressure Connectors Europe Division	Application	Industrial Machinery
Body Material	BRASS	Sleeve Material	BRASS
Specifications Met	RoHS	For Fluid Type	Compressed Air
Brand	Parker	Shape	Straight
Industry	Transportation	Seal Material	Without seal
Technology	Pneumatics	Length	60 mm
Hex Size	21 mm	Region of Origin	Germany
Connection Type	Hose Barb	Product Style	Quick-Connect
Maximum Operating Pressure	up to 35 bar	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Connection Size	10 mm
Interchange Type	European Profile	Plating Type	Without Surface Treatment
Valve Type	Without Valve	Coupling Half	Plug
Maximum Operating Temperature	up to 212 °F	Product Series	Series 26
Diameter	7.2 mm (nominal)	Flow Rate	1070 L/min (air)
Compatible Fitting	Series 26 Coupler	Minimum Operating Temperature	down to -20 °C
Function	Recoil Eliminator	Weight	0.0453 kg
Materials of Construction	Brass	Version	Single Shut-Off
Connection Size	10 mm	Coupling Half	Plug
Connection Type	Recoil Eliminator with Hose Barb
