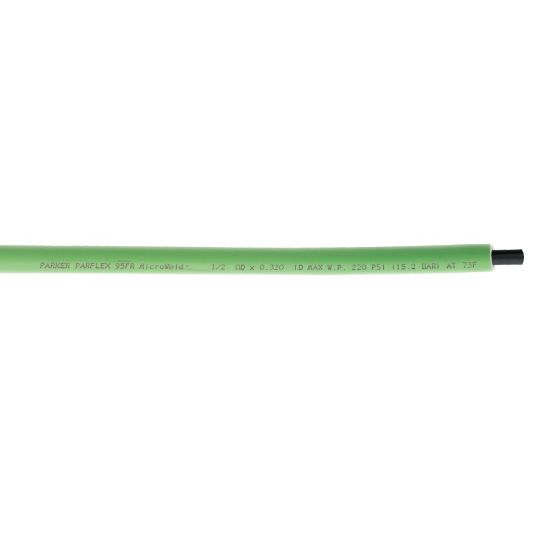

PU Tubing - Flame Resistant - 95FR-6-GRN-0250

Name: PU Tubing - Flame Resistant - 95FR-6-GRN-0250
SKU: 95FR-6-GRN-0250
Availability: OutOfStock

MicroWeld™ PolyurethaneTubing - 95FR is ideal for low to medium pressure air and water supply lines where weld spatter protection is required.

Availability:

Backordered

SKU: 95FR-6-GRN-0250

Qty:

Products specifications

Attribute name	Attribute value
Diameter	11.8 mm	Compatible Fitting	68PLM
Cover Material	Proprietary Material	Cover Color	Green
Weight	0.069 lb/ft	Maximum Operating Temperature	75 °C
Minimum Bend Radius	25.5 mm	Application	Pneumatic Systems
Maximum Operating Pressure	230 psi	Division	Parflex Division
Length per Package	250 ft	Minimum Operating Temperature	-40 °C
Minimum Burst Pressure	690 psi	Cover Thickness	0.045 inch
Tube Inside Diameter	6.4 mm	Tube Material	Polyurethane
Product Type	Fractional	Tube Outside Diameter	3/8 inch
Standard Pack Qty (ft)	250.0	Product Type	Inch
Color	GREEN	Order Size	-6
