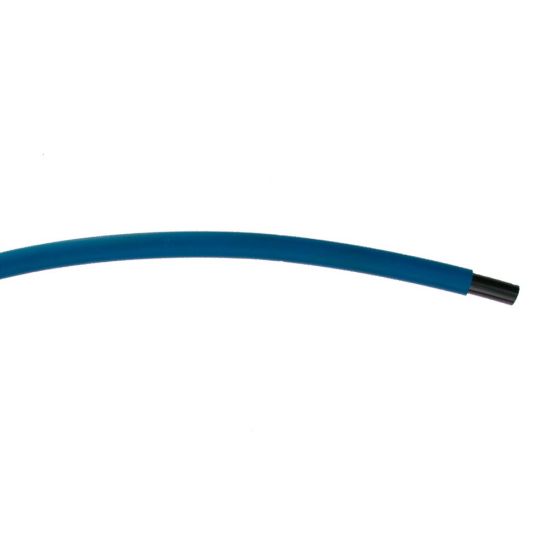

PU Tubing - Flame Resistant - 95FR-4-BLU-0500

Name: PU Tubing - Flame Resistant - 95FR-4-BLU-0500
SKU: 95FR-4-BLU-0500
Availability: OutOfStock

MicroWeld™ PolyurethaneTubing - 95FR is ideal for low to medium pressure air and water supply lines where weld spatter protection is required.

Availability:

Backordered

SKU: 95FR-4-BLU-0500

Qty:

Products specifications

Attribute name	Attribute value
Tube Inside Diameter	0.160 inch	Minimum Burst Pressure	720 psi
Cover Thickness	0.045 inch	Product Type	Fractional
Tube Outside Diameter	6.4 mm	Cover Color	Blue
Tube Material	Polyurethane	Minimum Bend Radius	19 mm
Length per Package	500 ft	Maximum Operating Pressure	1.65 MPa
Cover Material	Proprietary Material	Compatible Fitting	68PLM
Maximum Operating Temperature	75 °C	Application	Robotics
Weight	0.062 kg/m	Minimum Operating Temperature	-40 °F
Division	Parflex Division	Diameter	8.6 mm
Standard Pack Qty (ft)	500.0	Color	BLUE
Product Type	Inch	Order Size	-4
