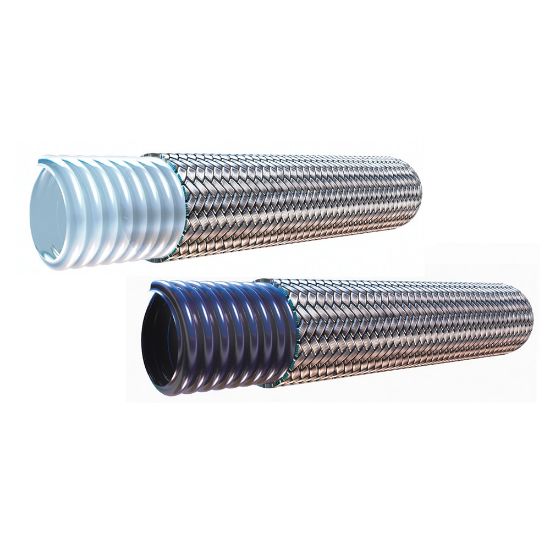

PTFE Hose - Convoluted - 939-16

Parker Convoluted 939/939B PTFE Hose features excellent flexibility and kink resistance for superior performance in chemical transfer, high temperature hydraulics, and hose applications requiring tight routings.

Availability:	Backordered
Partner Available:	65 in stock

SKU: 939-16

$59.16

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-100 °F	Minimum Bend Radius	127 mm
Design Factor	4:1	Cover Material	n/a
Media	Chemicals	Application	Ultra High Purity / Semi-Conductor
Maximum Operating Temperature	450 °F	Specifications Met	FDA 21 CFR 177.1550 (Tube)
Vacuum Pressure Rating	711.2 mm-Hg	Hose Reinforcement Material	Stainless Steel
Maximum Operating Pressure	6.9 MPa	Outside Diameter	33.8 mm
Hose Inner Tube Material	Polytetrafluoroethylene (PTFE)	Compatible Fitting	93N Series Cannot be crimped on Minikrimp
Size	-16	Weight	0.67 kg/m
Division	Parflex Division	Inside Diameter	25 mm
Hose Type	Natural PTFE	Hose I.D. (inch)	1
Size	-16
