Static Dissipative Hose - 929BJ - 929BJ-4

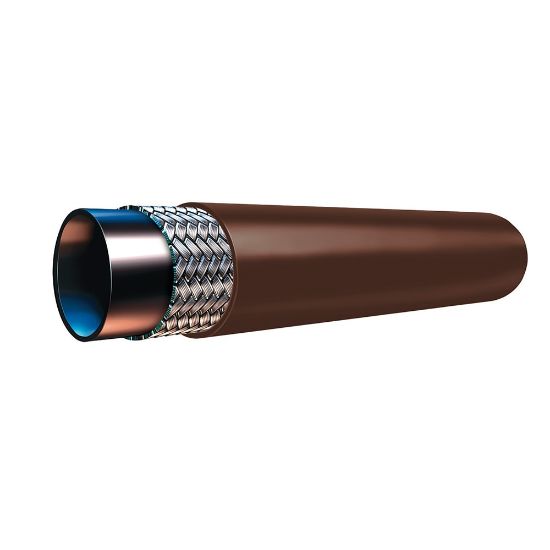

Parker's 929BJ hose features a static-dissipative PTFE core tube and a brown silicone, steam cleanable jacket to provide a smooth cover to protect the stainless steel wire reinforcement against wear, fraying and contaminants.

Availability:	Backordered
Partner Available:	1035 in stock

SKU: 929BJ-4

$28.58

Products specifications

Attribute name	Attribute value
Hose Inner Tube Material	Polytetrafluoroethylene (PTFE)	Minimum Bend Radius	51 mm
Media	Air	Maximum Operating Temperature	232 °C
Division	Parflex Division	Vacuum Pressure Rating	28 mm-Hg
Maximum Operating Pressure	3000 psi	Specifications Met	SAE J517 and 100R1, Type 4B
Product Style	Static Dissipative	Outside Diameter	0.580 inch
Hose Reinforcement Material	Braid of 304 Stainless Steel	Product Type	PTFE Hose
Design Factor	4:1	Compatible Fitting	91N Series
Application	Chemical Transfer	Inside Diameter	3/16 inch
Minimum Operating Temperature	-65 °F	Size	-4
Cover Material	Silicone	Weight	0.17 lb/ft
Hose I.D. (inch)	3/16
