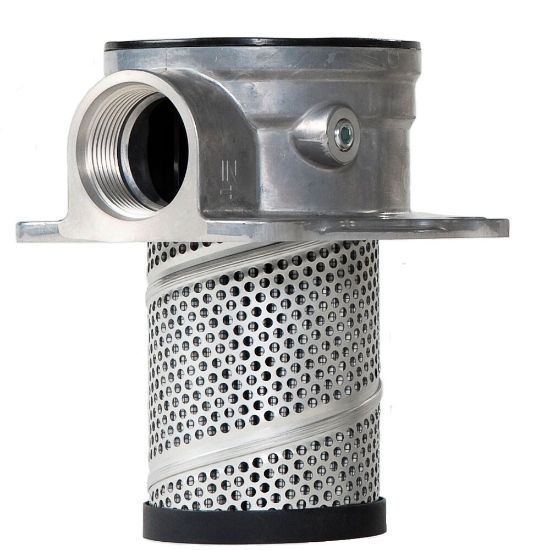

Low Pressure Tank Top Filters PT Series - PT4110QBPGS161

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.

Availability:	Backordered
Partner Available:	Backordered

SKU: PT4110QBPGS161

$164.20

Products specifications

Attribute name	Attribute value
Filter Element Type	10Q Microglass	Weight	1.79 lb
Bypass Valve Pressure Rating	1.7 bar	Mounting Style	Tank Mounted
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Indicator Type	Plugged ports
Pressure Rating	15 psi	Maximum Operating Temperature	107.0 °C
Seal Material	Nitrile	Compatible Element	936744
Housing Material	Aluminum	Flow Rate	113.6 L/min
Options	Tank Mounted	Indicator Pressure Setting	No indicator
Division	Engine Mobile Hydraulic and Fuel Filtration Division
Flow Rate	30 gpm (113.6 lpm)	Seal Material	Nitrile
Filter Element Type	10Q Microglass	Port Connection Type	SAE-16
Options	None	Bypass Valve Pressure Rating	25 psid (1.7 bar)
Indicator Type	Plugged Ports
