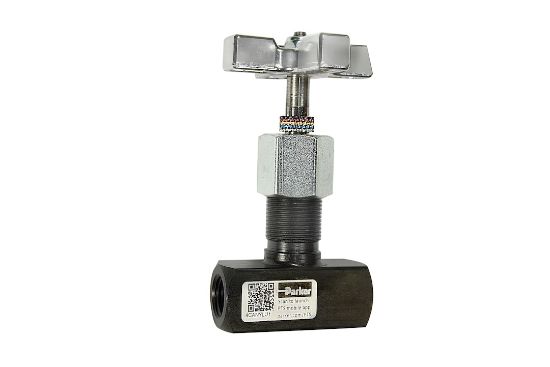

Colorflow In-Line Precision Needle Valve – MV Series - 9MV200S3

Parker’s Colorflow MV series valves is a high precision adjust needle valve that meters flow in both directions.

Availability:	Backordered
Partner Available:	Backordered

SKU: 9MV200S3

$237.99

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	345 bar	Body Material	Steel
Flow Rate	n/a	Actuation Type	Manual
Seal Material	Nitrile	Connection Type	BSPP
Division	Hydraulic Valve Systems Division	Maximum Flow Rate	3 Gal/min
Media	Oil	Mounting Style	Inline
Brand	Colorflow	Configuration	Inline
Maximum Operating Temperature	-40 °C	Minimum Operating Temperature	121 °C
Function	Metering Valve	Needle Type	Micro-Fine
Connection Size	1/8
Body Material	Steel	Connection Type	BSPP
Seal Material	Nitrile	Mounting Style	inline
Actuation Type	Manual	Minimum Operating Temperature	-40
Maximum Operating Pressure	N/A	Flow Rate	n/a
Function	Metering Valve	Maximum Operating Temperature	N/A
Needle Type	Micro-Fine	Connection Size	1/8
Maximum Flow Rate	.5
