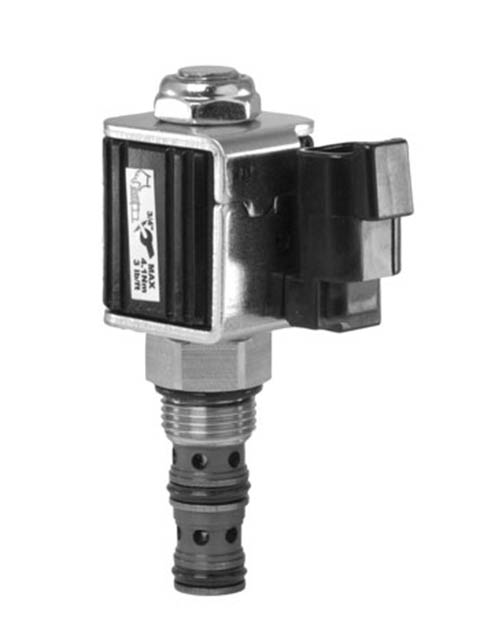

DSL083 Solenoid Valve
Spool Type - 3-Way Solenoid Valve for Size 08, 3-way Cavity
| Description: |
DSL083 Series Solenoid Valve - Spool Type - 3-Way
|
| Rated Flow:
|
15.0 LPM (4.0 GPM) |
| Leakage:
|
180 cc/min. (11 in3/min.) at 250 Bar (3600 PSI) |
| Max Pressure:
|
250 Bar (3600 PSI) |
| Operating Temperature:
|
-45C to +93.3C (-50F to +200F) |
| Common Cavity:
|
Size 08, 3-way |
|
| Valve Type:
|
Solenoid Valve |
| Valve Type Detail:
|
Spool Type - 3-Way |
| Port:
|
None - Cartridge Only |
| Valve Style:
|
3-way or 4-way spool (see catalog for flow paths) |
| Parker Division:
|
Hydraulic Cartridge Systems |
| Common Cavity Type:
|
Size 08, 3-way |
|
