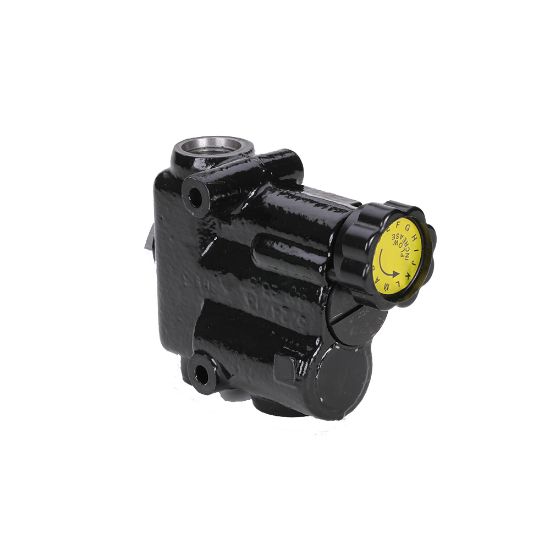

Priority Flow Control - DC25 Series - DC25A-10

Name: Priority Flow Control - DC25 Series - DC25A-10
SKU: DC25A-10
Availability: OutOfStock

Parker’s DC25A Adjustable Flow Divider is designed for providing a 1-26 GPM controlled flow source. It is typically applied for applications where frequent adjustments to the controlled flow rate are required.

Availability:

Backordered

SKU: DC25A-10

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Product Style	Priority Flow Control
Division	Hydraulic Valve Systems Division	Body Material	High Strength Cast Iron
Maximum Operating Temperature	+200 °F	Configuration	Inline
Actuation Type	Manual	Filter Efficiency Rating	ISO code 16/13 - SAE class 4 or better
Connection Size	#10	Flow Rate	Adjustable Gal/min
Maximum Flow Rate	30 Gal/min	Connection Type	SAE
Minimum Operating Temperature	-40 °F	Weight	8 lb
Maximum Operating Pressure	3000 psi	Function	Flow Control
Port Size	SAE-10	Maximum Operating Pressure	3000
Minimum Operating Pressure	70

Product resources

Literature and Reference Materials
