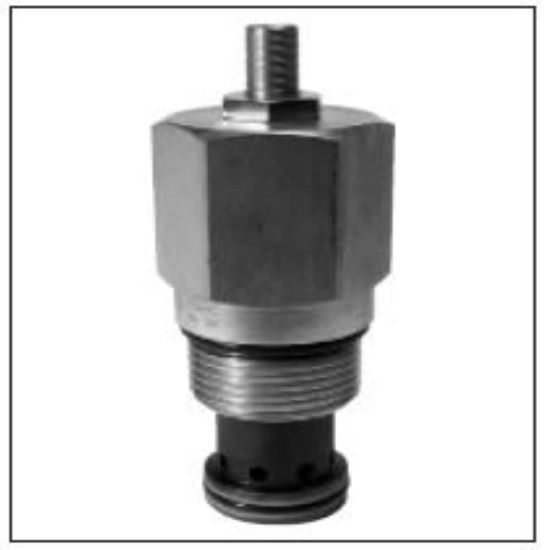

Pilot Operated Relief Valve with Free Reverse Check - A06P2PWN

Name: Pilot Operated Relief Valve with Free Reverse Check - A06P2PWN
SKU: A06P2PWN
Availability: OutOfStock

REGIONAL - Parker’s pilot operated relief valves with reverse flow check are designed for continuous duty applications for working with pressures up to 420 bar (6000 psi) and flows up to 350 lpm (92 gpm).

Availability:

Backordered

SKU: A06P2PWN

Qty:

Products specifications

Attribute name	Attribute value
Maximum Flow Rate	400 L/min	Seal Material	Nitrile
Maximum Operating Pressure	6000 psi	Body Material	n/a
Division	Hydraulic Cartridge Systems Division	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Leak Rate	5	For Fluid Type	Synthetic Hydraulic Fluids
Valve Material	Hardened Steel	Filter Efficiency Rating	ISO 4406 18/16/13
Maximum Operating Temperature	121 °C	Minimum Operating Temperature	-34 °C
Function	Pilot Operated	Configuration	Pressure Relief
Mounting Type	Screw-in Cartridge	Actuation Type	Pressure Sensing
Maximum Pressure Setting	420 bar	Flow Rate	106 Gal/min
Weight	1.26 lb	Division	Mobile Hydraulic Systems Division Europe
Cavity Size	C16-2	Operation Type	Automatic
Installation Torque	100 Nm	Adjustment Mechanism	Knob
Maximum Tank Pressure	420 bar	Operating Temperature	-34 to 121 °C
Pressure Control Range	145 to 6000 psi	Standard Setting Pressure	2900 psi
Pressure Control Sensitivity	53	Maximum Inlet Pressure Rating	6000 psi
Flow Rate	106 GAL/MIN, 400 L/MIN	Seal Material	Knob
Adjustment Mechanism	Tamper Resistant
