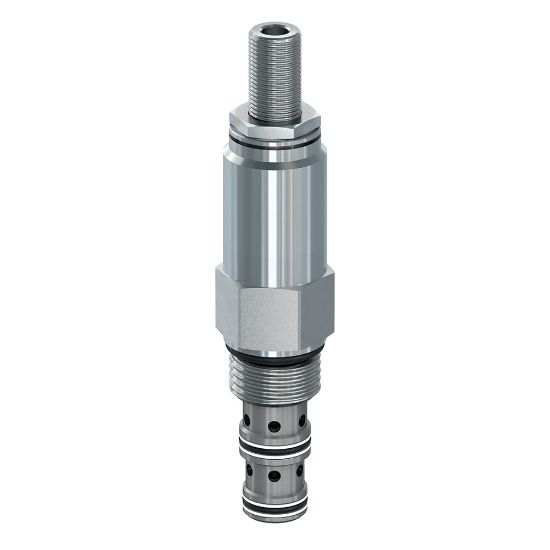

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Pressure Compensated Priority Flow Control Valves - FP101S780V

Name: Pressure Compensated Priority Flow Control Valves - FP101S780V
SKU: FP101S780V
Availability: OutOfStock

Pressure compensated priority flow control valves maintain constant flow regardless of changes to inlet pressure for flows up to 90 lpm (24 gpm) and pressures up to 420 bar (6000 psi); excess flow is diverted once the priority flow requirement is met.

Availability:

Backordered

SKU: FP101S780V

Qty:

Products specifications

Attribute name	Attribute value
Installation Torque	16	Function	Flow Regulator Valve
Maximum Operating Pressure	3500	Seal Material	Fluorocarbon
Maximum Flow Rate	15	Actuation Type	Pressure Compensated
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Operation Type	Manually operated
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-15
Maximum Priority Flow	9	Configuration	Priority Flow
Valve Material	All parts steel. All operating parts hardened steel	Adjustment Mechanism	Screw
Maximum Operating Temperature	+400	Maximum Regulated Flow Rate	N/A
Standard Flow Rate Setting	n/a	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Body Material	n/a	Flow Rate Accuracy	20%
Cavity Size	C10-3	Connection Type	n/a
Connection Size	n/a	Division	Hydraulic Systems Division
Flow Rate Display Range	6.3-9.3 gal/min This is the regulated flow range (min - max)	Operating Temperature	-15 to +400
Maximum Inlet Pressure Rating	3500	Weight	0.5
Flow Rate	15	Division	Hydraulic Valve Systems Division
Maximum Flow Rate	15 GAL/MIN, 56.3 L/MIN	Flow Rate Display Range	6.3-9.3 GAL/MIN, 23.6-34.9 L/MIN
Adjustment Mechanism	Screw	Standard Flow Rate Setting	N/A
Seal Material	Fluorocarbon
