*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

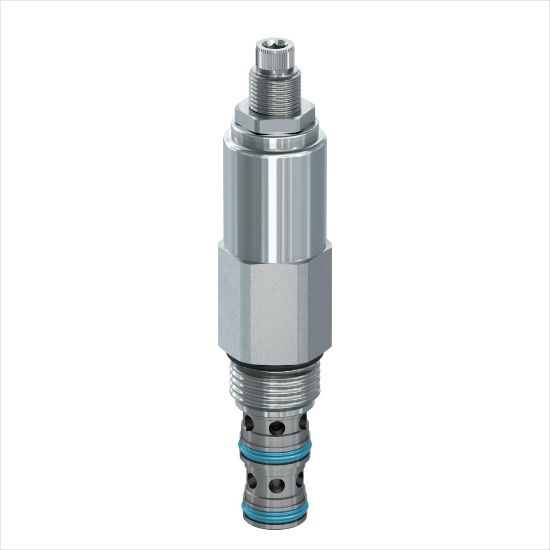

Direct Acting Sequence Valve - SV103K06

Parker’s direct acting sequence valves can be piloted and vented allowing multiple actuators to work in sequence based on pressure settings; working with flows up to 56 lpm (15 gpm) and pressures up to 420 bar (6000 psi).

Availability:	Backordered
Partner Available:	Backordered

SKU: SV103K06

$144.00

Products specifications

Attribute name	Attribute value
Body Material	n/a	Minimum Operating Temperature	-37 °C
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Division	Hydraulic Systems Division
Pilot Location	Internal	Weight	0.45 kg
Maximum Operating Pressure	3600 psi	Actuation Type	Pressure Sensing
Operation Type	Automatic	Adjustment Mechanism	Knob
Seal Material	D-Ring (Standard)	Function	Direct Acting Sequence
Cavity Size	C10-3	Drain Option	External
Sealed Pilot Included	No	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Configuration	Normally Closed	Valve Material	All parts steel. All operating parts hardened steel
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Mounting Type	Screw in cartridge valve
Operating Temperature	-37 to +93 °C	Maximum Operating Temperature	+93 °C
Maximum Inlet Pressure Rating	3600 psi	Installation Torque	37-41 lb-ft
Flow Rate	56 L/min	Maximum Flow Rate	56 L/min
Leak Rate	82 @ 3000 PSI (210 BAR) cm3/min	Maximum Tank Pressure	3600 psi
Pressure Control Range	100-600 psi	Maximum Pressure Setting	42 bar
Standard Setting Pressure	300 psi	Pressure Control Sensitivity	6.6 per turn bar
Adjustment Mechanism	Knob	Seal Material	D-Ring (Standard)
Sealed Pilot Included	No	Maximum Inlet Pressure Rating	3600 PSI, 250 BAR
Flow Rate	15 GAL/MIN, 56 L/MIN	Pressure Control Range	100-600 PSI, 6.9-42 BAR
