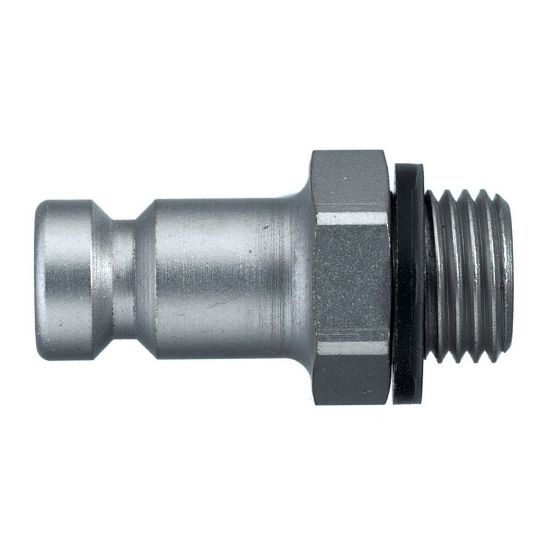

Premium Quick Coupling with German Profile, Series 52 - 52SFAW13SXN

Name: Premium Quick Coupling with German Profile, Series 52 - 52SFAW13SXN
SKU: 52SFAW13SXN
Availability: OutOfStock

Premium quick coupling system with nominal diameter 6 for pneumatic and fluid handling applications up to 50 bar. Coupling system with German industrial profile. Available made of brass/steel.

Availability:

Backordered

SKU: 52SFAW13SXN

Qty:

Products specifications

Attribute name	Attribute value
Outside Diameter	na	Diameter	6 nom
Maximum Operating Pressure	50 bar	Minimum Operating Temperature	-20 °C
Length	35 mm	Seal Material	na
Flow Rate	1100 L/min	Maximum Operating Temperature	100 °C
Hex Size	17 mm	Division	Low Pressure Connectors Europe Division
Valve Included	No
Material	Steel nickel plated	Hose I.D.	na
Type	Plug	Version	Single Shut-Off
Connection Type	Male Thread - parallel	Connection Thread Size (inch)	1/4
