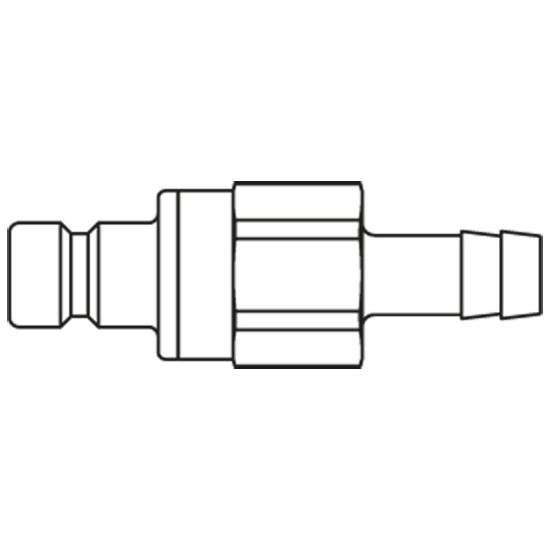

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Premium Quick Coupling with German Industrial Profile, Series 57 - 57SBTF16MVN

Name: Premium Quick Coupling with German Industrial Profile, Series 57 - 57SBTF16MVN
SKU: 57SBTF16MVN
Availability: OutOfStock

Premium quick coupling system with nominal diameter 12 for pneumatic and fluid handling applications up to 35 bar. Coupling system with German industrial profile. Available made of brass/steel.

Availability:

Backordered

SKU: 57SBTF16MVN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Minimum Operating Temperature	-15 °C
Maximum Operating Pressure	35 bar	Valve Included	Yes
Seal Material	FKM	Maximum Operating Temperature	200 °C
Outside Diameter	na	Version	Double Shut-Off
Diameter	11 nom	Hex Size	34 mm
Flow Rate	4295 L/min
Connection Thread Size	na	Type	Plug
Connection Type	Hose Barb	Length (mm)	107
Hose I.D.	16	Material	Brass - nickel plated
