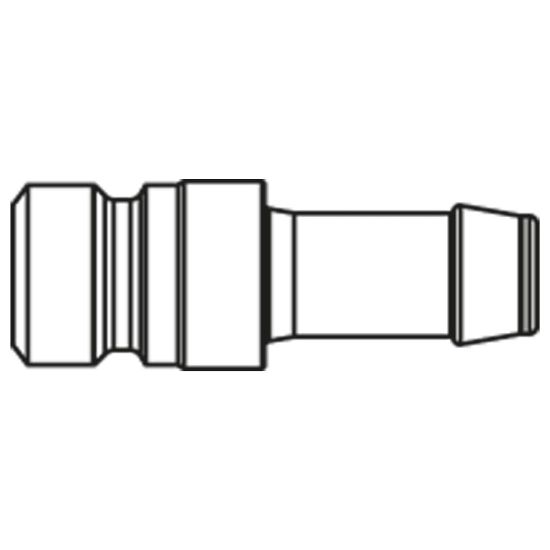

Premium Quick Coupling - Scandinavian Profile - 1800 Series - 1800SFTF06RXX

Name: Premium Quick Coupling - Scandinavian Profile - 1800 Series - 1800SFTF06RXX
SKU: 1800SFTF06RXX
Availability: OutOfStock

Parker quick coupling system Premium Plus with scandinavian profile and nominal diameter 10 for pneumatic and fluid handling applications up to 35 bar!

Availability:

Backordered

SKU: 1800SFTF06RXX

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	na	Maximum Operating Pressure	35 bar
Hex Size	n/a	Valve Included	No
Outside Diameter	n/a	Minimum Operating Temperature	-25 °C
Division	High Pressure Connectors Europe Division	Maximum Operating Temperature	200 °C
Length	44 mm	Diameter	10 nom
Flow Rate	2300 L/min
Type	Plug	Connection Type	Hose Barb
Connection Thread Size (inch)	na	Hose I.D.	6
Version	Single Shut-Off	Material	AISI 303
