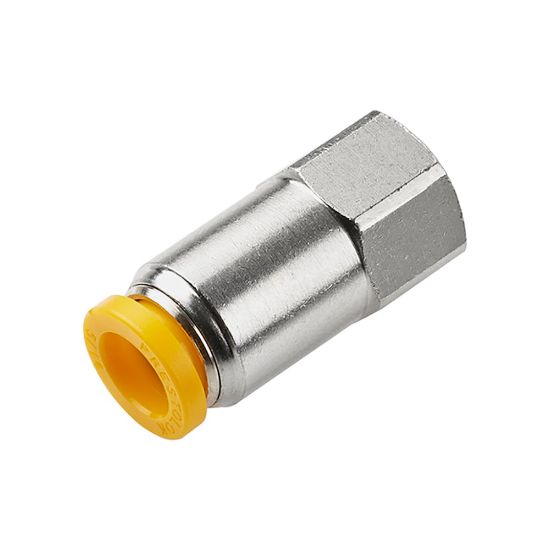

Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal - 66PLP-8M-2G

Name: Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal - 66PLP-8M-2G
SKU: 66PLP-8M-2G
Availability: OutOfStock

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Availability:

Backordered

SKU: 66PLP-8M-2G

Qty:

Products specifications

Attribute name	Attribute value
Application	Oil Lines	Vacuum Pressure Rating	28 Inch-Hg
Division	Fluid System Connectors Division	Industry	Industrial Manufacturing Equipment
Maximum Operating Pressure	300 psi	Hex Size	9/16 inch
Seal Material	Nitrile	For Fluid Type	Oil
Materials of Construction	PVDF (Button)	Gripping Ring Material	STAINLESS STEEL
Technology	Pneumatics	Tube Material	Polyethylene
Region of Origin	United States	Specifications Met	UL 94 V-0
Body Material	Brass, Nickel-plated	Division	Fluid System Connectors Division
Minimum Operating Temperature	-17.7 °C	Brand	Parker
Maximum Operating Temperature	200 °F
Connection 1 Type	Push-to-Connect	Product Style	Connector
Connection 2 Size	1/8"	Connection 2 Type	Female BSPP
Configuration	Tube to Pipe	Connection 1 Size	8 mm
