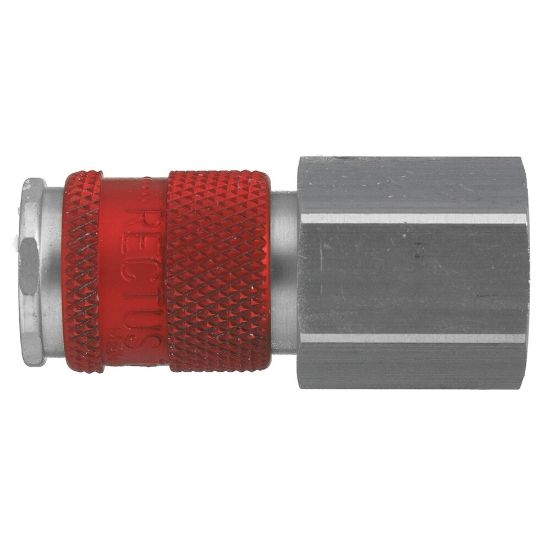

Premium Coded Quick Coupling, Series 25 - 25KAIW21BPN8

Name: Premium Coded Quick Coupling, Series 25 - 25KAIW21BPN8
SKU: 25KAIW21BPN8
Availability: OutOfStock

Premium coded industrial quick coupling system with nominal diameter 7.8 for pneumatic and fluid handling applications up to 35 bar. Coupling system developed on the basis of Parker Series 25. Available made of brass.

Availability:

Backordered

SKU: 25KAIW21BPN8

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Division	Low Pressure Connectors Europe Division
Body Material	BRASS	Sleeve Material	BRASS
Minimum Operating Temperature	-20 °C	Seal Material	NBR
Shape	Straight	Version	Single Shut-Off
Valve Included	Yes	Coupling Half	Coupler
Connection Type	BSPP	Technology	Pneumatics
Outside Diameter	23 mm	Length	58 mm
Hex Size	24 mm	Flow Rate	1800 L/min
Region of Origin	Germany	Product Style	Quick-Connect
Compatible Fitting	Series 25 Plug	Maximum Operating Pressure	up to 35 bar
Brand	Rectus	Function	Single Shut-Off
Plating Type	Nickel-plated	Operation Type	Sleeve
Interchange Type	European Profile	Connection Size	1/2 inch
Product Type	Quick Couplings Pneumatic	Maximum Operating Temperature	up to 212 °F
Diameter	7.8	Product Series	Series 25
Type	Coupling	Hose I.D.	n/a
Connection Thread Size	1/2"	Connection Type	Female Thread - parallel
Color	red - 8	Material	Brass, Nickel-plated

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Hydraulic Quick Couplings Catalogue--CAT/3800-HYD/UK
