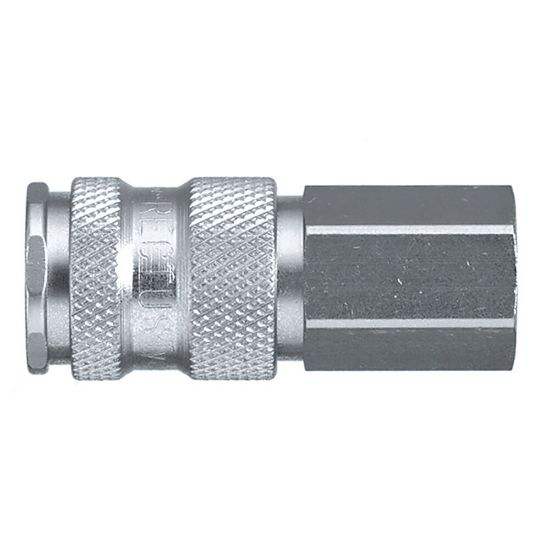

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25KAIW21EVX

Name: Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25KAIW21EVX
SKU: 25KAIW21EVX
Availability: OutOfStock

Quick coupling system with nominal diameter 7.8 for pneumatic (series 25, 1600 and 1625), liquids and gas applications (series 25) up to 35 bar. Available in nickel-plated brass, steel, stainless steel (technical polymer sleeve for series 1625).

Availability:

Backordered

SKU: 25KAIW21EVX

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Division	Low Pressure Connectors Europe Division	Brand	Parker
Shape	Straight	Valve Included	Yes
Coupling Half	Coupler	For Fluid Type	Air
Technology	Pneumatics	Minimum Operating Temperature	5 °F
Body Material	Stainless Steel 316L	Seal Material	FKM
Maximum Operating Temperature	200 °C	Industry	Healthcare & Life Sciences
Outside Diameter	23 mm	Hex Size	24 mm
Region of Origin	Germany	Connection Type	Female
Specifications Met	ATEX	Application	Air & Gas Compressor
Product Style	Quick-Connect	Compatible Fitting	Series 25 Plug
Maximum Operating Pressure	up to 35 bar	Function	Single Shut-Off
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Connection Size	G 1/2	Interchange Type	European Profile
Plating Type	Without Surface Treatment	Sleeve Material	Stainless Steel
Weight	0.12 kg	Valve Type	High Flow Valve
Diameter	7.4 mm (nominal)	Flow Rate	1800 L/min (air)
Product Series	Series 25	Length	57.5 mm
Version	Single Shut-Off	Coupling Half	Coupler
Connection Size	1/2"	Connection Type	Female, BSPP
Materials of Construction	Stainless Steel AISI 316L
