*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

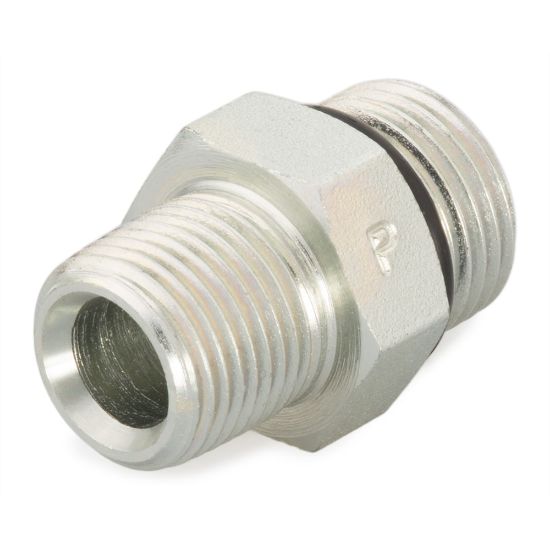

Pipe Fittings and Port Adapters - 8-1/4 F5OF-S

Parker's Pipe Fittings and Port Adapters product line offers a wide range of thread types and high static pressure ratings.

Availability:	24 in stock
Partner Available:	77 in stock

SKU: 8-1/4 F5OF-S

$11.53

Products specifications

Attribute name	Attribute value
Connection 4 Size	na	Maximum Dynamic Pressure	6000 psi
Division	Tube Fittings Division	Fitting Type	Port Adapter
Connection 4 Thread Size	na	Dimensional Weight	0.07913669064748201 lb
Connection Style	SAE-ORB to NPT/NPTF	Length (inch)	na
Connection 1 Style	Male SAE-ORB	Connection 2 Style	Male NPT/NPTF
Shape	Straight	Connection 1 Thread Size (inch)	3/4-16
Body Material	Steel	Connection 1 Thread Size (mm)	na
O-Ring Material	90 Durometer Nitrile	Connection 2 Thread Size (mm)	na
Connection 2 Thread Size (inch)	1/4-18	Connection 3 Thread Size (inch)	na
Connection 3 Style	na
