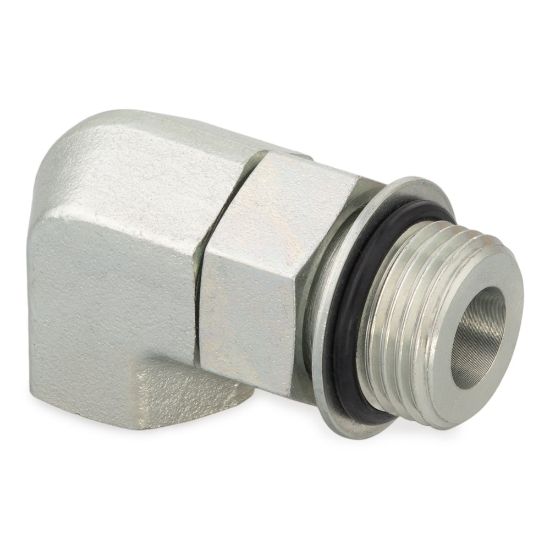

Pipe Fittings and Port Adapters - 10-1/2 AOEG-S

Parker's Pipe Fittings and Port Adapters product line offers a wide range of thread types and high static pressure ratings.

Availability:	40 in stock
Partner Available:	197 in stock

SKU: 10-1/2 AOEG-S

$26.99

Products specifications

Attribute name	Attribute value
Division	Tube Fittings Division	Connection 4 Size	na
Dimensional Weight	0.07742805755395683 lb	Connection 4 Thread Size	na
Maximum Dynamic Pressure	3000 psi	Fitting Type	Port Adapter
Length (inch)	na	Body Material	Steel
Connection 3 Style	na	Connection 1 Thread Size (mm)	na
Connection 2 Thread Size (mm)	na	Connection 2 Thread Size (inch)	1/2-14
Connection 3 Thread Size (inch)	na	O-Ring Material	90 Durometer Nitrile
Connection 1 Style	Male SAE-ORB	Connection 1 Thread Size (inch)	7/8-14
Shape	90° Elbow	Connection 2 Style	Female NPT/NPTF
Connection Style	SAE-ORB to NPT/NPTF
