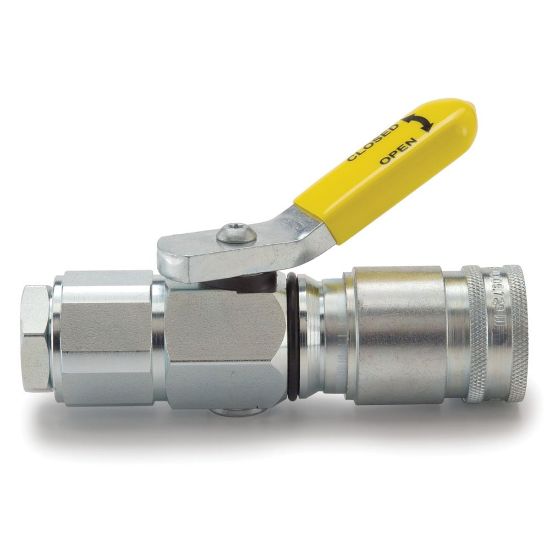

Pioneer Agricultural, Connect Under Pressure, Lever Operated Quick Couplers, Breakaway Sleeve (ISO 5675) - 9200 Series - 9250-15L

Name: Pioneer Agricultural, Connect Under Pressure, Lever Operated Quick Couplers, Breakaway Sleeve (ISO 5675) - 9200 Series - 9250-15L
SKU: 9250-15L
Availability: OutOfStock

Parker's premium agricultural connect under pressure quick couplers are lever actuated to easily open and close the valves while under pressure. The coupler valve will close automatically in a breakaway.

Availability:

Backordered

SKU: 9250-15L

Qty:

Products specifications

Attribute name	Attribute value
Application	Connect Under Pressure	Coupling Half	Coupler
Body Size	1/2 inch	Division	Quick Coupling Division
Specifications Met	ISO 5675	Brand	Pioneer
Seal Material	Nitrile	Connection Type	UNF
Flow Rate	12 Gal/min	Body Material	Steel
Maximum Operating Pressure	3000 psi	Media	Hydraulic
Thread Size	Female	Valve Type	Poppet
Maximum Operating Temperature	250 °F	Lock Type	Locking balls
Plating Type	Zinc with clear trivalent chromate	Minimum Operating Temperature	-40 °F
Sleeve Type	Manual push pull sleeve	Mounting Position	Left hand – yellow grip
Connection Thread Size (inch)	3/4 - 16
