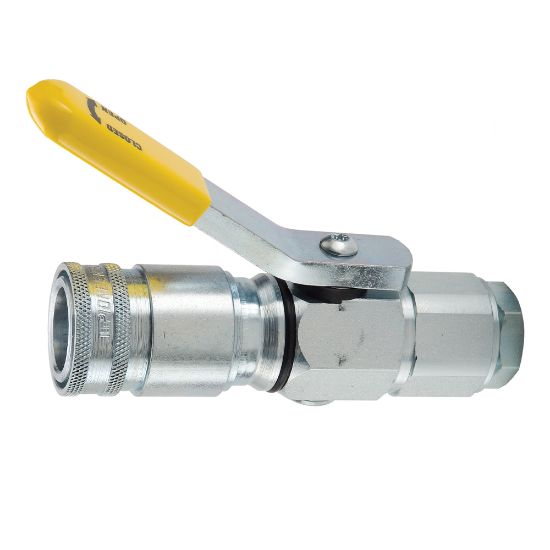

Pioneer Agricultural, Connect Under Pressure, Lever Operated Quick Couplers, Breakaway Sleeve (ISO 5675) - 9200 Series - 9250-334

Parker's premium agricultural connect under pressure quick couplers are lever actuated to easily open and close the valves while under pressure. The coupler valve will close automatically in a breakaway.

Availability:	Backordered
Partner Available:	Backordered

SKU: 9250-334

$181.51

Products specifications

Attribute name	Attribute value
Application	Hydraulics	Plating Type	Zinc with clear trivalent chromate
Coupling Half	Coupler	Division	Quick Coupling Division
Specifications Met	ISO 7241 Series B	Body Size	1/2 inch
Seal Material	Nitrile	Brand	Pioneer
Flow Rate	12 Gal/min	Body Material	Steel
Connection Type	UNF	Media	Hydraulic
Maximum Operating Temperature	250 °F	Thread Size	Female
Minimum Operating Temperature	-40 °F	Valve Type	Poppet
Lock Type	Locking balls	Maximum Operating Pressure	3000 psi
Sleeve Type	Manual push pull sleeve	Mounting Position	Left hand – yellow grip
Connection Thread Size (inch)	9/16 - 18

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
