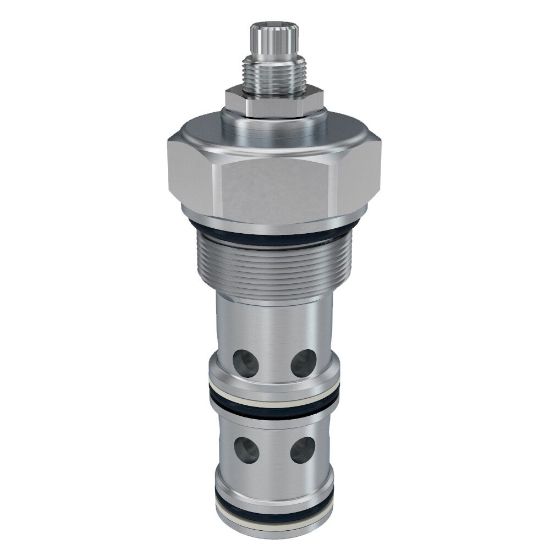

Pilot Operated Sequence Valves - SVH162K20V

Name: Pilot Operated Sequence Valves - SVH162K20V
SKU: SVH162K20V
Availability: OutOfStock

Parker’s pilot operated sequence valves can be internally or externally piloted to allow multiple actuators to work in sequence based on pressure settings; working with flows up to 152 lpm (40 gpm) and pressures up to 380 bar (5500 psi).

Availability:

Backordered

SKU: SVH162K20V

Qty:

Products specifications

Attribute name	Attribute value
Body Material	n/a	Reseat Pressure	80% of set pressure
Maximum Operating Pressure	380 bar	Weight	0.45 kg
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Cracking Pressure	N/A psi
Minimum Operating Temperature	-15 °F	Cavity Size	6-3
Pressure Control Sensitivity	539 per turn psi	Valve Material	All parts steel. All operating parts hardened steel
Port Size	n/a	Division	Hydraulic Systems Division
Maximum Tank Pressure	350 bar	Leak Rate	5 per 100 psi (6.8 bar) setting cm3/min
Standard Setting Pressure	69 bar	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Installation Torque	99 Nm	Seal Material	Fluorocarbon
Maximum Drain Flow Rate	0.58 L/min	Flow Rate	40 Gal/min
Maximum Flow Rate	151.6 L/min	Drain Option	Internal
Pilot Location	External	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Function	Pilot Operated Sequence	Adjustment Mechanism	Knob
Maximum Pressure Setting	2000 psi	Pressure Control Range	13.8-138 bar
Maximum Inlet Pressure Rating	380 bar	Actuation Type	Pressure Sensing
Mounting Type	Threaded Cartridge Valve	Maximum Operating Temperature	+400 °F
Operating Temperature	-15 to +400 °F	Division	Hydraulic Cartridge Systems Division
Cracking Pressure (psi)	N/A	Pressure Range Adjustment (psi)	200-2000
Seal Material	Fluorocarbon	Rated Flow (gpm)	40
Adjustment Type	Knob	Drain Option	Internal
Pilot Option	External
