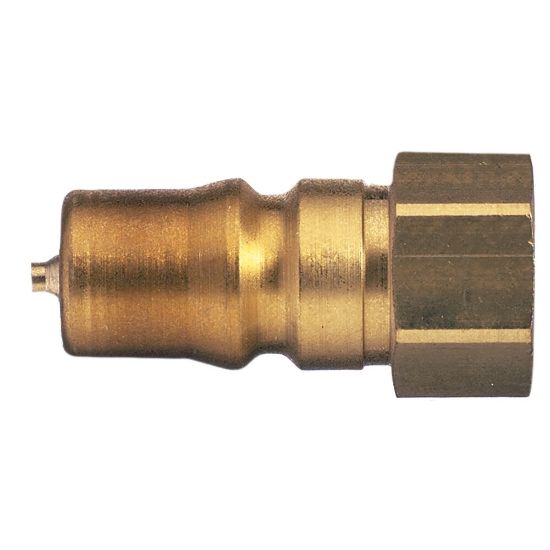

Quick Coupling with ISO 7241-1 Series B Profile, Series 70 - 71SBIW10MVX

Name: Quick Coupling with ISO 7241-1 Series B Profile, Series 70 - 71SBIW10MVX
SKU: 71SBIW10MVX
Availability: OutOfStock

Quick coupling system with nominal diameter 4.3 up to 20 for pneumatic and fluid handling applications up to 250 bar. Coupling system with a worldwide used ISO 7241-1 series B profile. Available made of brass or stainless steel.

Availability:

Backordered

SKU: 71SBIW10MVX

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Minimum Operating Temperature	-15 °C
Maximum Operating Pressure	250 bar	Valve Included	Yes
Seal Material	FKM	Maximum Operating Temperature	200 °C
Hex Size	14 mm	Outside Diameter	na
Version	Double Shut-Off	Application	Pneumatic & Fluid Handling
Length	29,5 mm	Body Size	1/8 inch
Flow Rate	440 L/min
Type	Plug	Material	Brass
Connection Type	Female Thread - parallel	Connection Thread Size	1/8
