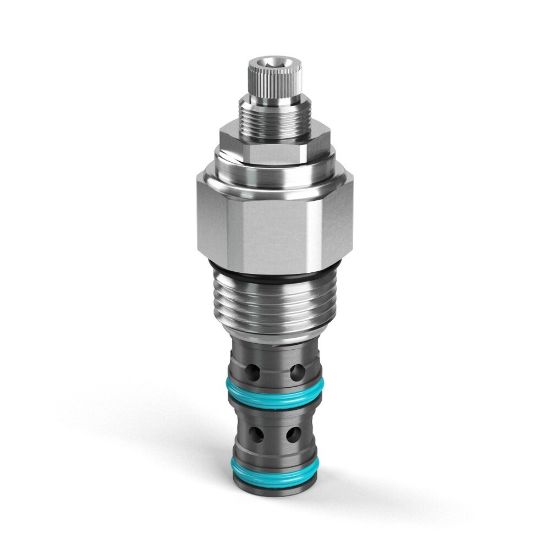

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Pilot Operated Sequence Valves - SVH102K30

Parker’s pilot operated sequence valves can be internally or externally piloted to allow multiple actuators to work in sequence based on pressure settings; working with flows up to 152 lpm (40 gpm) and pressures up to 380 bar (5500 psi).

Availability:	Backordered
Partner Available:	Backordered

SKU: SVH102K30

$99.75

Products specifications

Attribute name	Attribute value
Port Size	n/a	Body Material	n/a
Maximum Operating Pressure	5500 psi	Division	Hydraulic Cartridge Systems Division
Minimum Operating Temperature	-37 °C	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Division	Hydraulic Systems Division	Pilot Location	External
Weight	1 lb	Actuation Type	Pressure Sensing
Maximum Pressure Setting	3000 psi	Adjustment Mechanism	Knob
Maximum Tank Pressure	5000 psi	Seal Material	D-Ring (Standard)
Function	Pilot Operated Sequence	Cavity Size	C10-3
Drain Option	Internal	Mounting Type	Threaded Cartridge Valve
Maximum Inlet Pressure Rating	5500 psi	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Operating Temperature	-37 to +93 °C	Maximum Operating Temperature	+93 °C
Installation Torque	51-55 lb-ft	Flow Rate	56.3 L/min
Maximum Flow Rate	56.3 L/min	Standard Setting Pressure	103.5 bar
Pressure Control Range	13.8-210 bar	Leak Rate	82 @ 3000 PSI (210 BAR) cm3/min
Reseat Pressure	90% of set pressure	Cracking Pressure	N/A bar
Maximum Drain Flow Rate	1.53 Gal/min	Pressure Control Sensitivity	59 per turn bar
Drain Option	Internal	Seal Material	D-Ring (Standard)
Adjustment Type	Knob	Pilot Option	External
Rated Flow (gpm)	15	Cracking Pressure (psi)	N/A
Pressure Range Adjustment (psi)	200-3000
