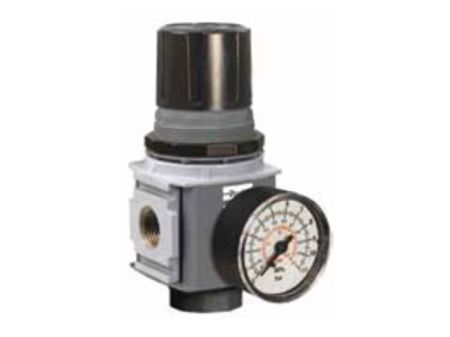

P32 Compact Global Modular Regulator - P32RA94BNGP

Name: P32 Compact Global Modular Regulator - P32RA94BNGP
SKU: P32RA94BNGP
Availability: OutOfStock

P32 Compact Airline Regulator

Availability:

Backordered

SKU: P32RA94BNGP

Qty:

Products specifications

Attribute name	Attribute value
Relieving/Non-relieving	Relieving	Operating Temperature	-25°C to 65.5°C (-13°F to 150°F)
Pkg Qty	1	Gauge Type	Round
Secondary Pressure Range	2 to 125 PSIG (0 to 8.6 bar)	UOM	EA
Maximum Flow	142 SCFM (67 dm3/s)	Supply Pressure Range	0 to 300 PSIG (0 to 20 bar)
Port	1/2 NPT
Operating Temperature	-25°C to 65.5°C (-13°F to 150°F)	Relieving/Non-relieving	Relieving
Port Inch/BSP	NPT	Air Preparation Series	Global Modular
Parker Division	Pneumatic	Air Preparation Product Type	Regulator
Flow Range	100 - 200 SCFM	Secondary Pressure Range	2 to 125 PSIG (0 to 8.6 bar)
Series	P32 Compact	Supply Pressure Range	0 to 300 PSIG (0 to 20 bar)
Parker Group	Automation	Gauge Type	Round
Port	1/2 NPT
