Pilot Operated Relief Valves - RAH081S50

Parker’s pilot operated relief valves are designed for continuous duty applications featuring great stability with low pressure drop; working with pressures up to 420 bar (6000 psi) and flows up to 400 lpm (106 gpm).

Availability:	Backordered
Partner Available:	117 in stock

SKU: RAH081S50

$75.25

Products specifications

Attribute name	Attribute value
Division	Hydraulic Systems Division	Pressure Control Range	13.8-350 bar
Installation Torque	32-36 lb-ft	Flow Rate	75.8 L/min
Maximum Tank Pressure	350 bar	Cavity Size	C08-2
Pressure Control Sensitivity	131.7 per turn bar	Operating Temperature	-35 to +200 °F
Maximum Pressure Setting	350 bar	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Body Material	n/a	Maximum Operating Pressure	5000 psi
Maximum Operating Temperature	+200 °F	Valve Material	All parts steel. All operating parts hardened steel
Maximum Flow Rate	20 Gal/min	Adjustment Mechanism	Screw
Actuation Type	Pressure Sensing	Standard Setting Pressure	172.4 bar
Maximum Inlet Pressure Rating	5000 psi	Division	Hydraulic Cartridge Systems Division
Operation Type	Automatic	Minimum Operating Temperature	-37 °C
Mounting Type	Screw in cartridge valve	Reseat Pressure	90% of pressure setting
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Function	Pilot Operated
Leak Rate	5 per @ 100 psi (6.8 bar) setting cm3/min	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Configuration	Pressure Relief	Seal Material	D-Ring (Standard)
Weight	0.09 kg
Pressure Control Range	200-5000 PSI, 13.8-350 BAR	Adjustment Mechanism	Screw
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR	Flow Rate	20 GAL/MIN, 75.8 L/MIN
Seal Material	D-Ring (Standard)

Customers who bought this item also bought

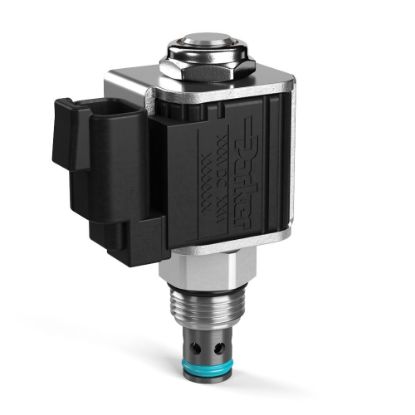

2 Way Poppet Type Solenoid Valve - DSL081C

Parker's 2-way poppet solenoid valves check flow in one direction with very low leakage and free flow opposite; normally-open or normally-closed configurations available. Capable of pressures up to 350 bar (5000 psi) and flows up to 260 lpm (70 gpm).

$49.25

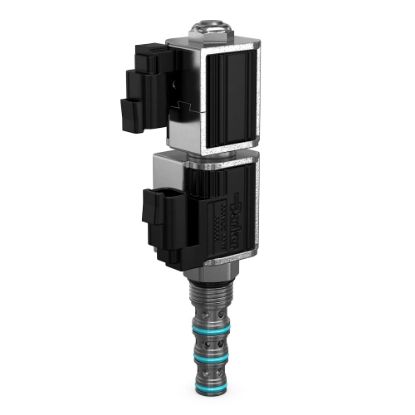

4 Way 3 Position Spool Type Solenoid Valve - DSL105C4M
